WP220

Universal wall panel – Bluetooth receiver input – 80 x 80 mm

  • Elegant design to blend in with any environment
  • Compatible with EU (80×80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise

Technical specifications

Available models
WP220/B  Black version – EU-style standard
WP220/W  White version – EU-style standard
WP220US/B New  Black version – 1-gang US standard
WP220US/W New  White version – 1-gang US standard
System specifications
Control Bluetooth pairing button with LED

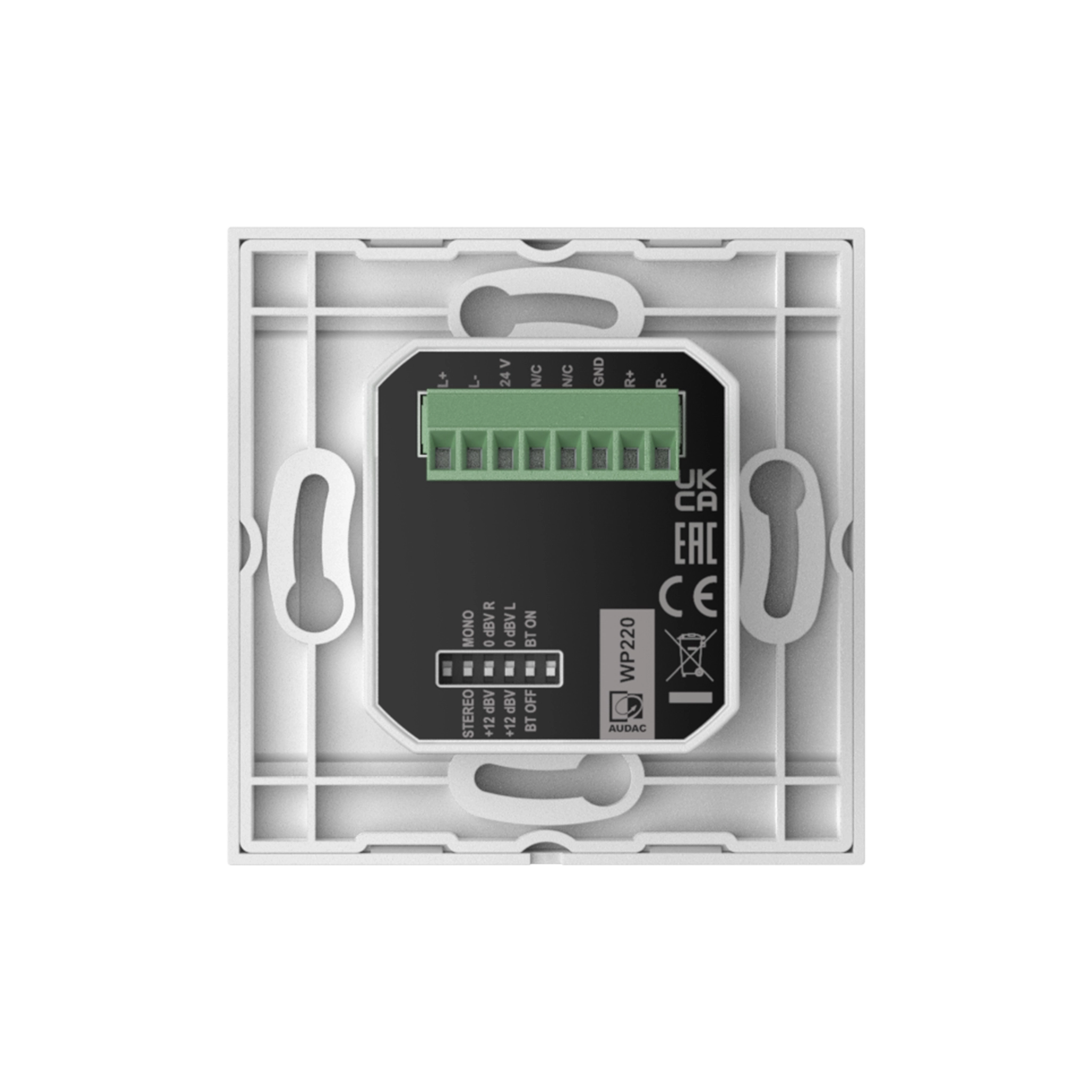

  Output level +12 dBV enable / disable (DIP switch on rear)
  Bluetooth enable / disable (DIP switch on rear)
  Mono / Stereo (DIP switch on rear)
Inputs Wall Panel Type Bluetooth receiver (Version 5.0)
Outputs Level +12 dB
    0 dB
Connection 8-pin terminal block (3.81 mm pitch) output connection
Product Features
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Colours Black (RAL9005) (WP220/B)
  White (RAL9003) (WP220/W)
Front finish Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes WB200 – Surface mount wall box for WP & NWP series
    Flush mount Installation boxes Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS
      Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
Installation standard Compatible with EU installation materials
  1-gang US standard (WP220US)

Categories: ,

Description

The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It was never easier connecting your Bluetooth enabled device with your audio installation using this wall plate.  It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.

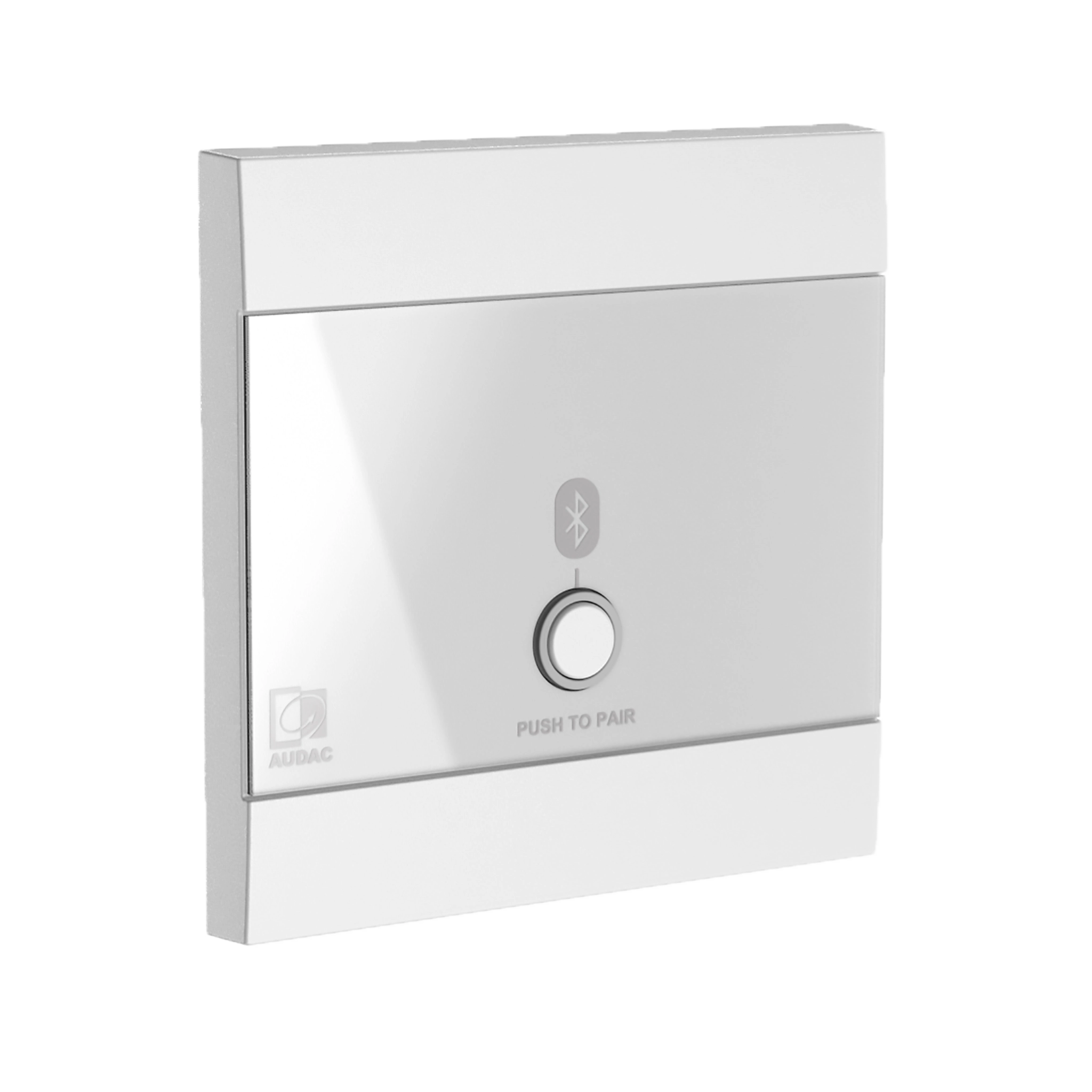

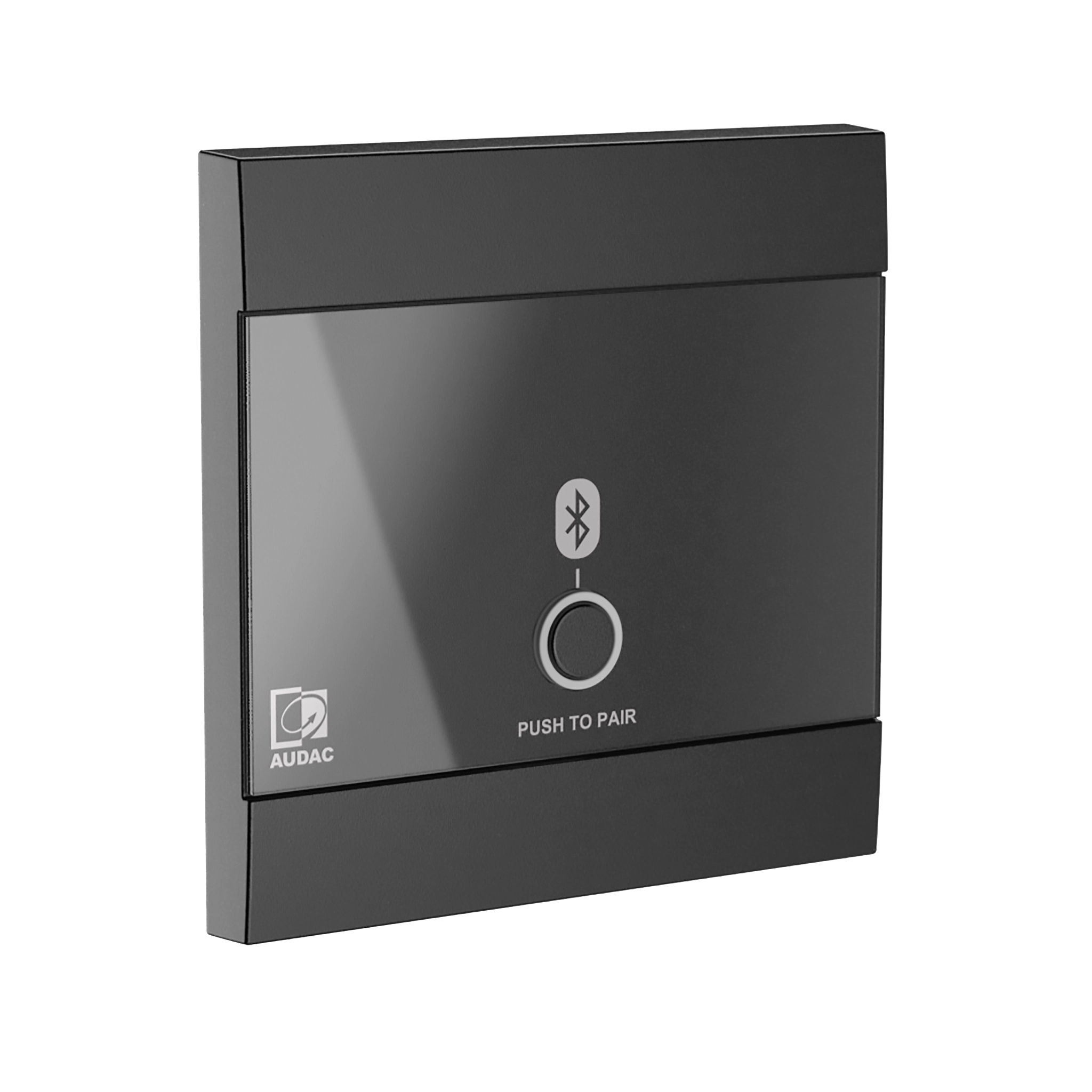

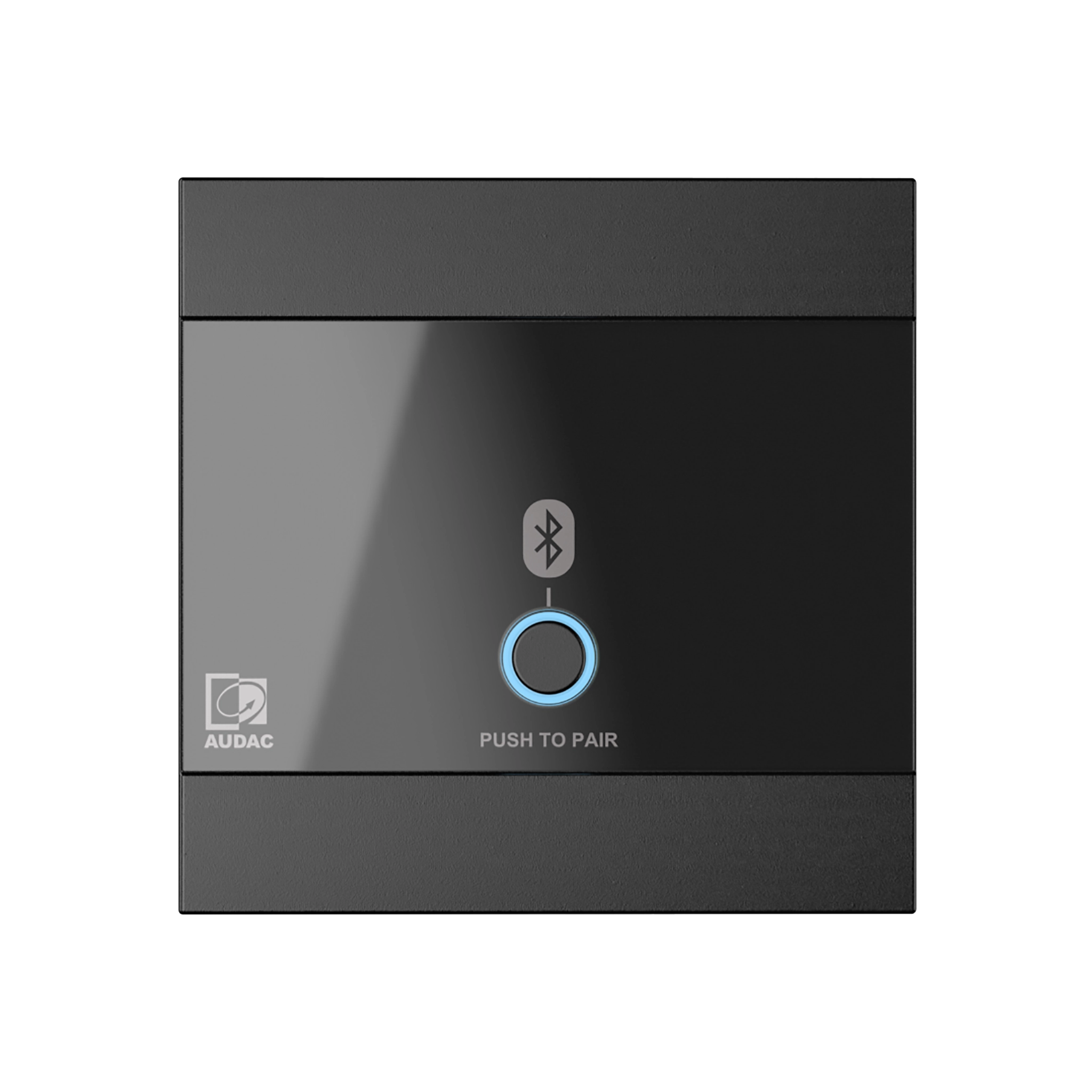

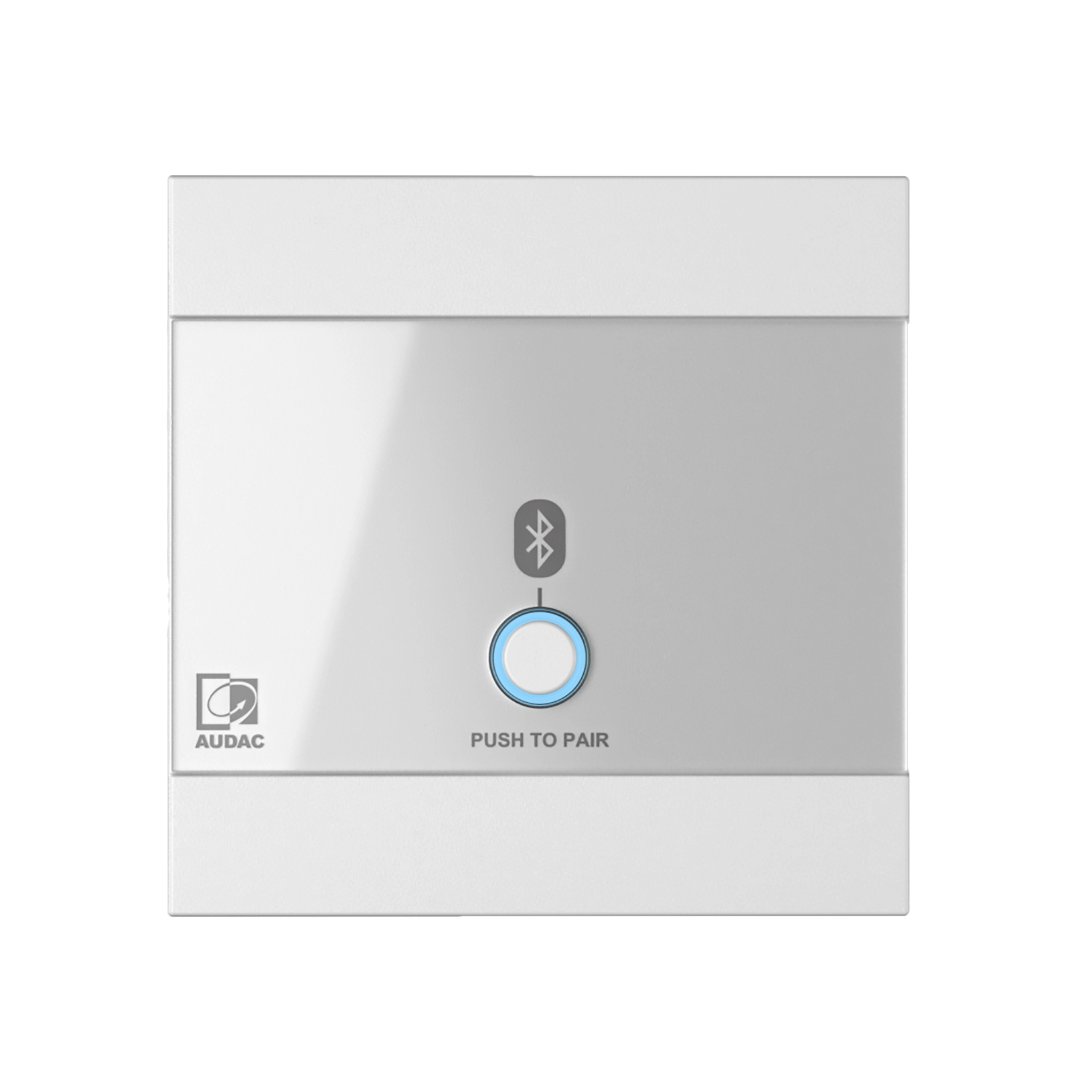

On the front side of the wall panel, you’ll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc…

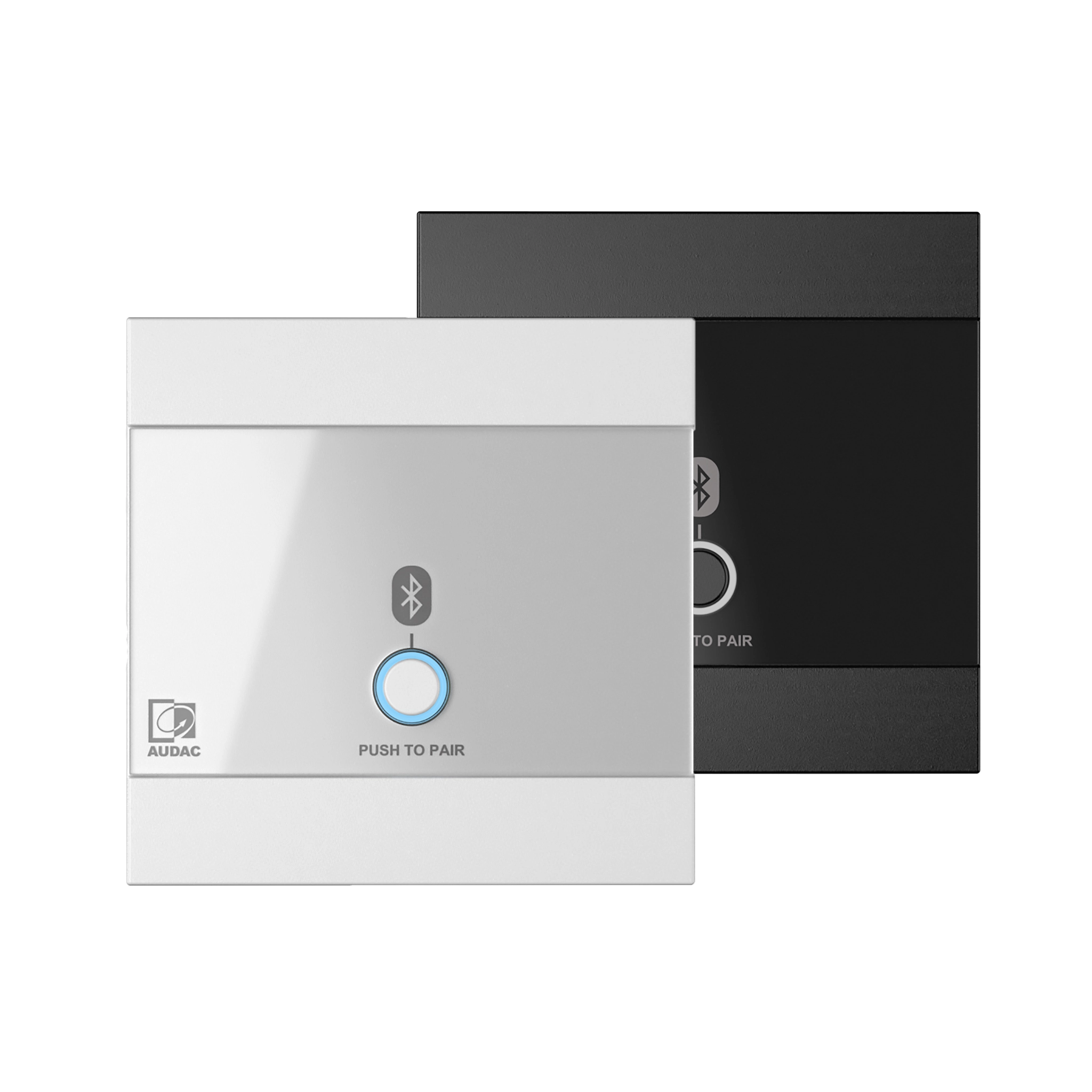

The WP220 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
