WP210

Universal wall panel – Microphone & line input – 80 x 80 mm

  • Elegant design to blend in with any environment
  • Compatible with EU (80×80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise

Technical specifications

Available models
WP210/B  Black version – EU-style standard
WP210/W  White version – EU-style standard
WP210US/B New  Black version – 1-gang US standard
WP210US/W New  White version – 1-gang US standard
System specifications
Outputs Level +12 dB
    0 dB
Inputs Wall Panel Type 3.5 mm jack stereo line input connection
      XLR microphone input connection

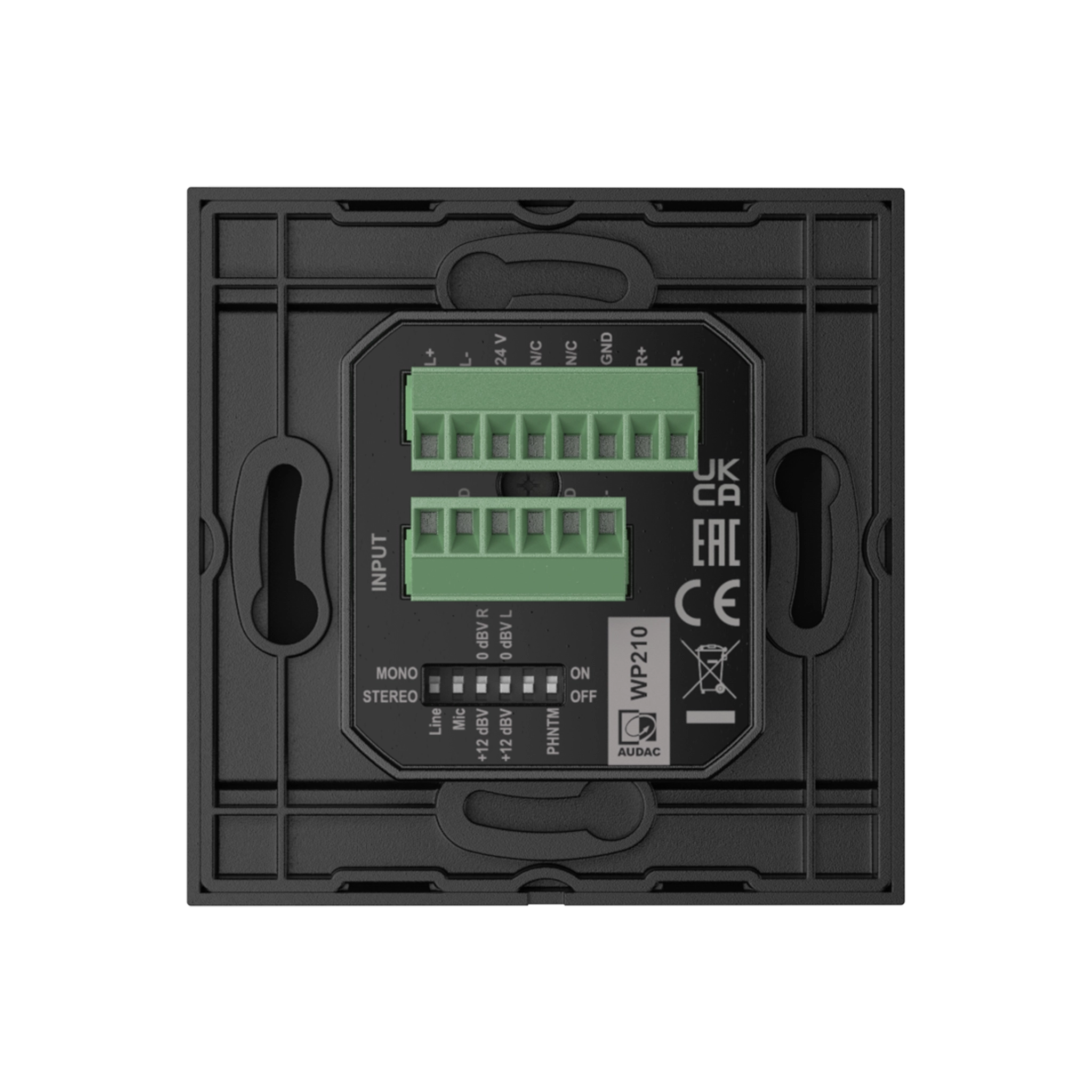

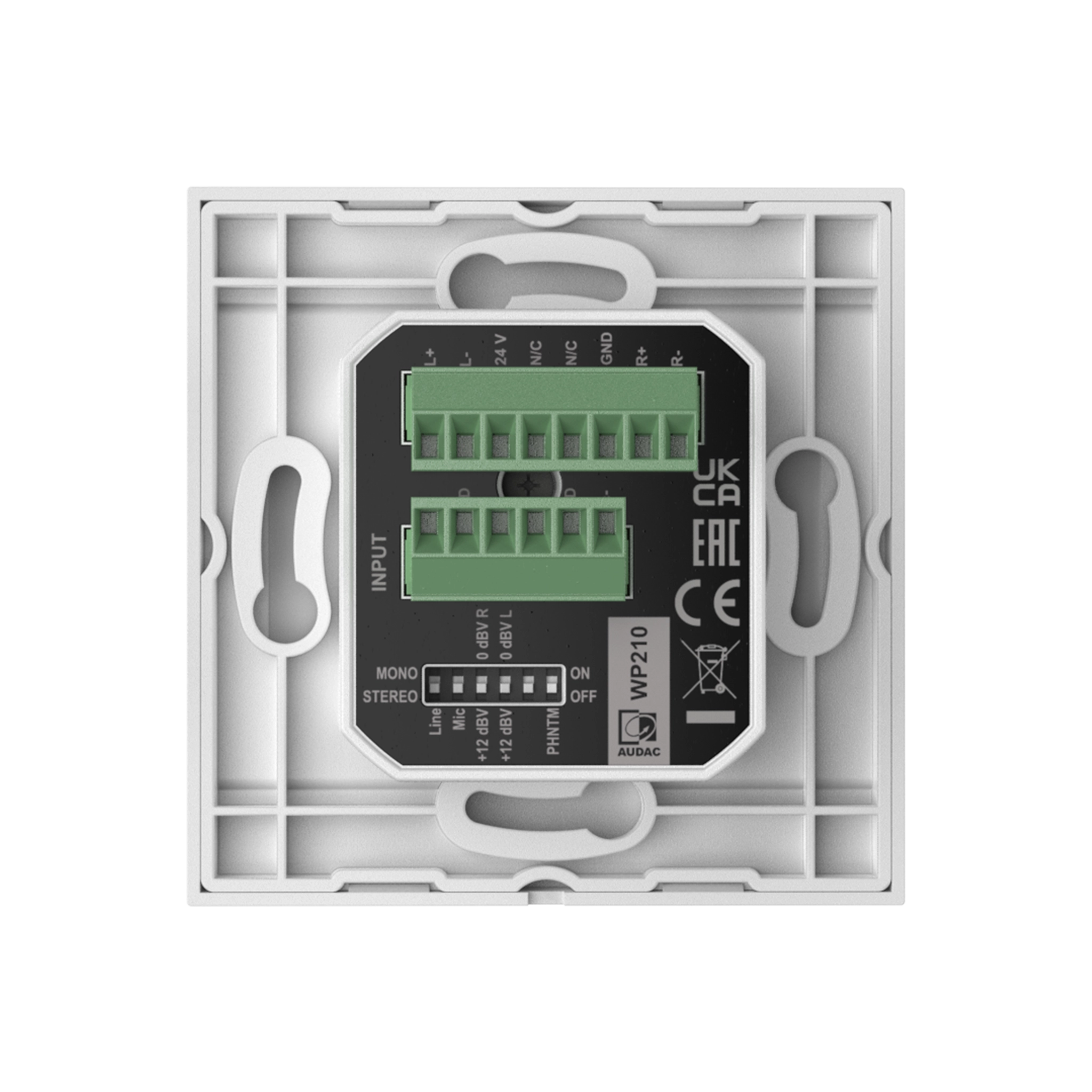

      Mic & Line inputs on rear for permanent connections
Connection 3.5 mm jack input (Stereo line input)
  Female XLR input connector (Microphone input)
  6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)
  8-pin terminal block (3.81 mm pitch) output connection
Control Individual input level control for Mic & Line
  Phantom power (DIP switch on rear)
  Low-cut (Mic) enable / disable (DIP switch on rear)
  Mono / Stereo (DIP switch on rear)
Product Features
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Colours Black (RAL9005) (WP210/B)
  White (RAL9003) (WP210/W)
Front finish Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes WB200 – Surface mount wall box for WP & NWP series
    Flush mount Installation boxes Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS
      Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
Installation standard Compatible with EU installation materials
  1-gang US standard (WP210US)
Categories: ,

Description

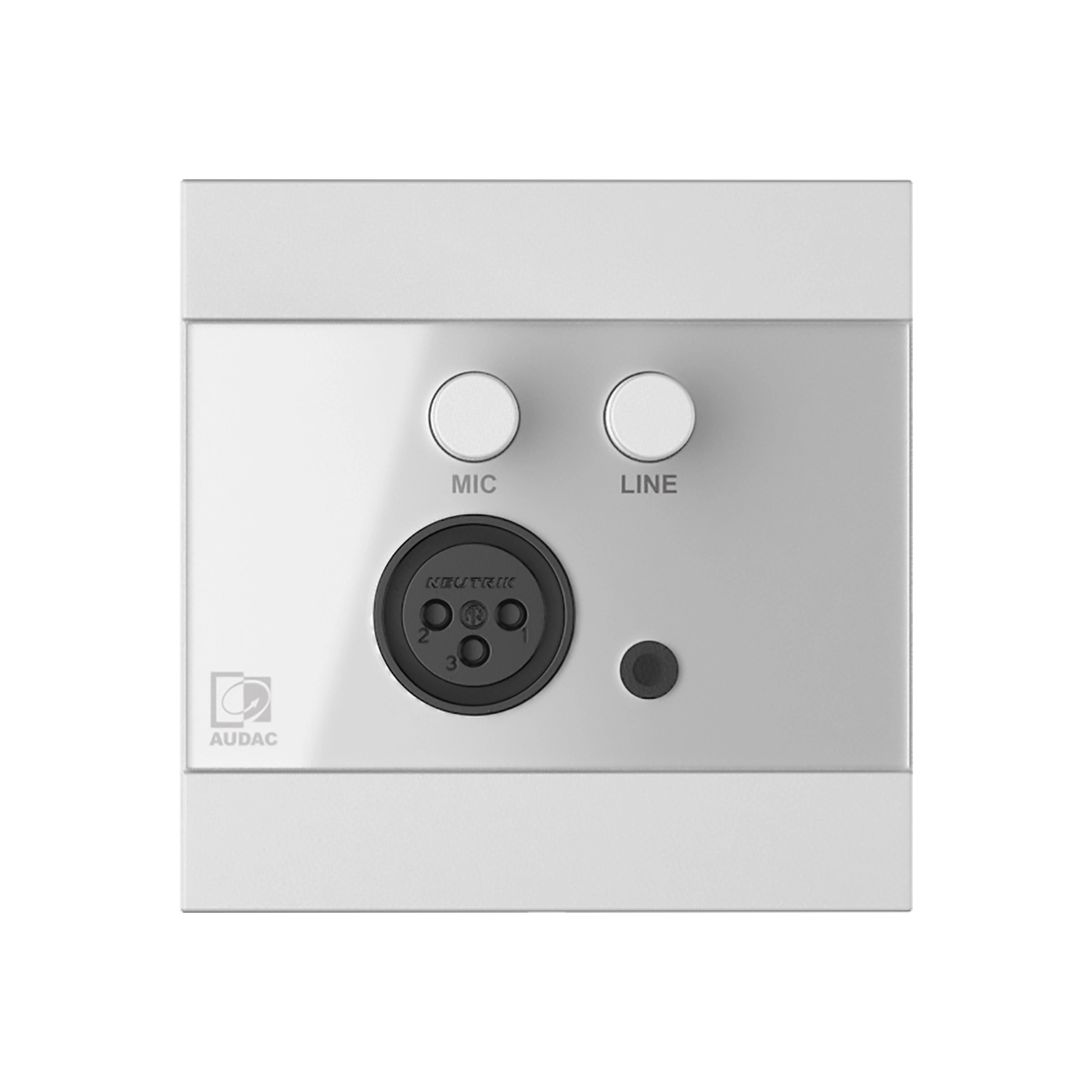

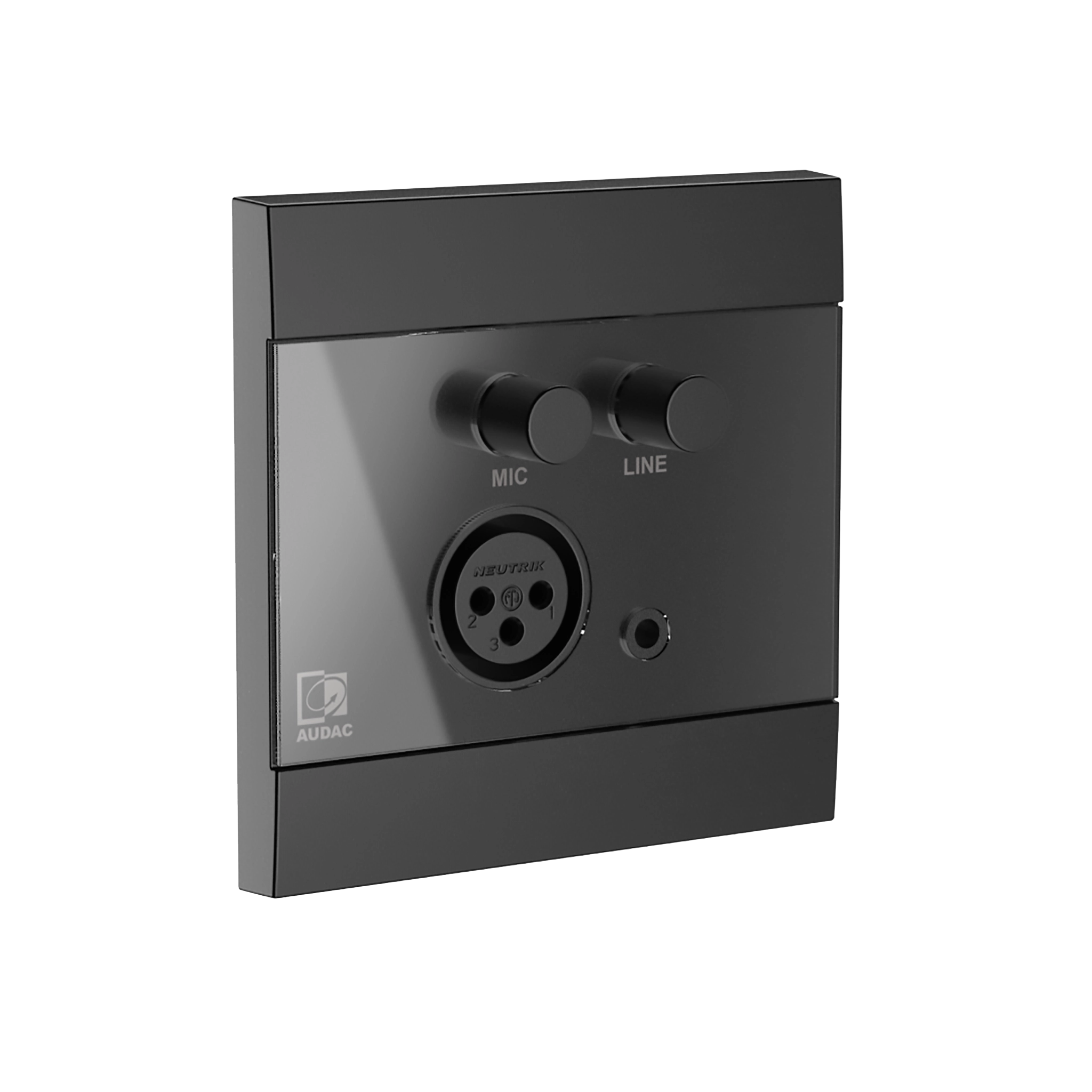

The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP210 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

Please note:
These in-output wall panels are designed for fixed installation applications and are not suitable for use with DJ mixing panel setups. They are intended for balanced audio connections and general-purpose signal distribution, not for high-level, dynamic signal processing typically required in DJ environments.
