WP205 (B/W) - Meta-Tech Solutions and Systems Corp.

Technical specifications

Available models

WP205/B	Black version – EU-style standard
WP205/W	White version – EU-style standard
WP205US/B New	Black version – 1-gang US standard
WP205US/W New	White version – 1-gang US standard

System specifications

Outputs	Level		+12 dB
Inputs	Wall Panel	Type	3.5 mm jack stereo line input connection
			XLR microphone input connection
Connection			3.5 mm jack input (Stereo line input)
			Female XLR input connector (Microphone input)
			8-pin terminal block (3.81 mm pitch) output connection
Control			Individual input level control for Mic & Line
			Phantom power (DIP switch on rear)
			Low-cut (Mic) enable / disable (DIP switch on rear)
			Mono / Stereo (DIP switch on rear)

Product Features

Dimensions			80 x 80 mm (W x H) (Remote wall panel)
Colours			Black (RAL9005) (WP205/B)
			White (RAL9003) (WP205/W)
Front finish			Elegant ABS front panel with Acrylic (PMMA) glass finish
Accessories	Optional	Surface mount Installation boxes	WB200 – Surface mount wall box for WP & NWP series
		Flush mount Installation boxes	Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS
			Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
Installation standard			Compatible with EU installation materials
			1-gang US standard (WP205US)

Description

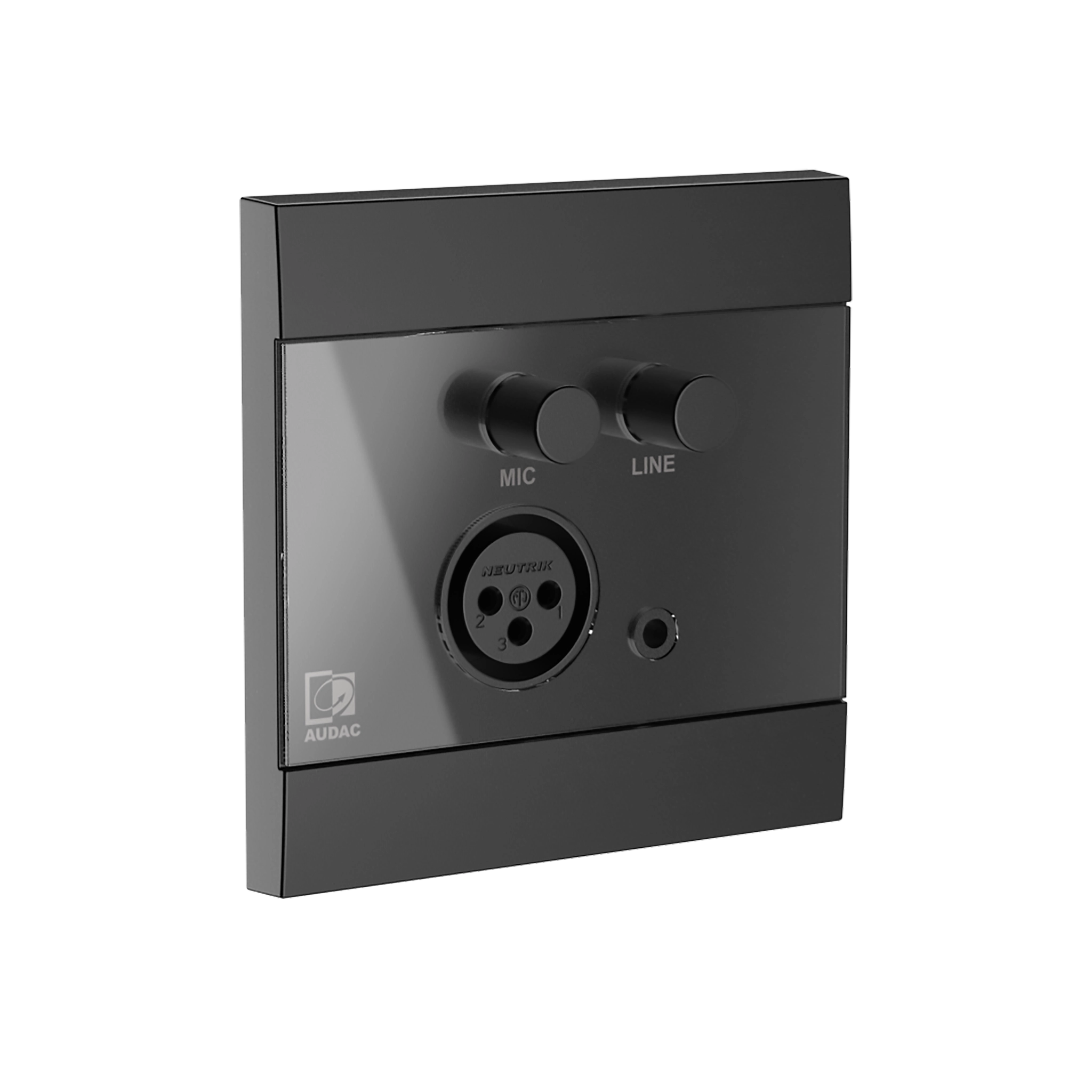

The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP205 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.
