Meta-Tech Solutions and Systems Corp.

NWP300

Network input panel – BT + 3.5 mm jack (4 CH)

  • 3.5mm stereo jack input
  • 4 x 4 channels Dante™ & AES67
  • All-in-one mixing & sound processing
  • Integrated Bluetooth receiver (Version 4.2)
  • Ultra efficient cooling
  • Superior sound quality & low latency

Technical specifications

Available models
NWP300/B  Black version – EU-style standard
NWP300/W  White version – EU-style standard
NWP300US/B New  Black version – 1-gang US standard
NWP300US/W New  White version – 1-gang US standard
System specifications
Inputs Bluetooth
  3.5 mm Jack
Control 1 button – Bluetooth discoverable
Indicators 1 LED (RGB) – Bluetooth status
Configurable settings IP settings
  Device name
  Gain
  DSP (EQ)
  Mixing
Configuration Audac Touch™
Integrated DSP Yes (EQ)
Automatic level control Yes
Power Supply PoE powered (IEEE 802.3at)

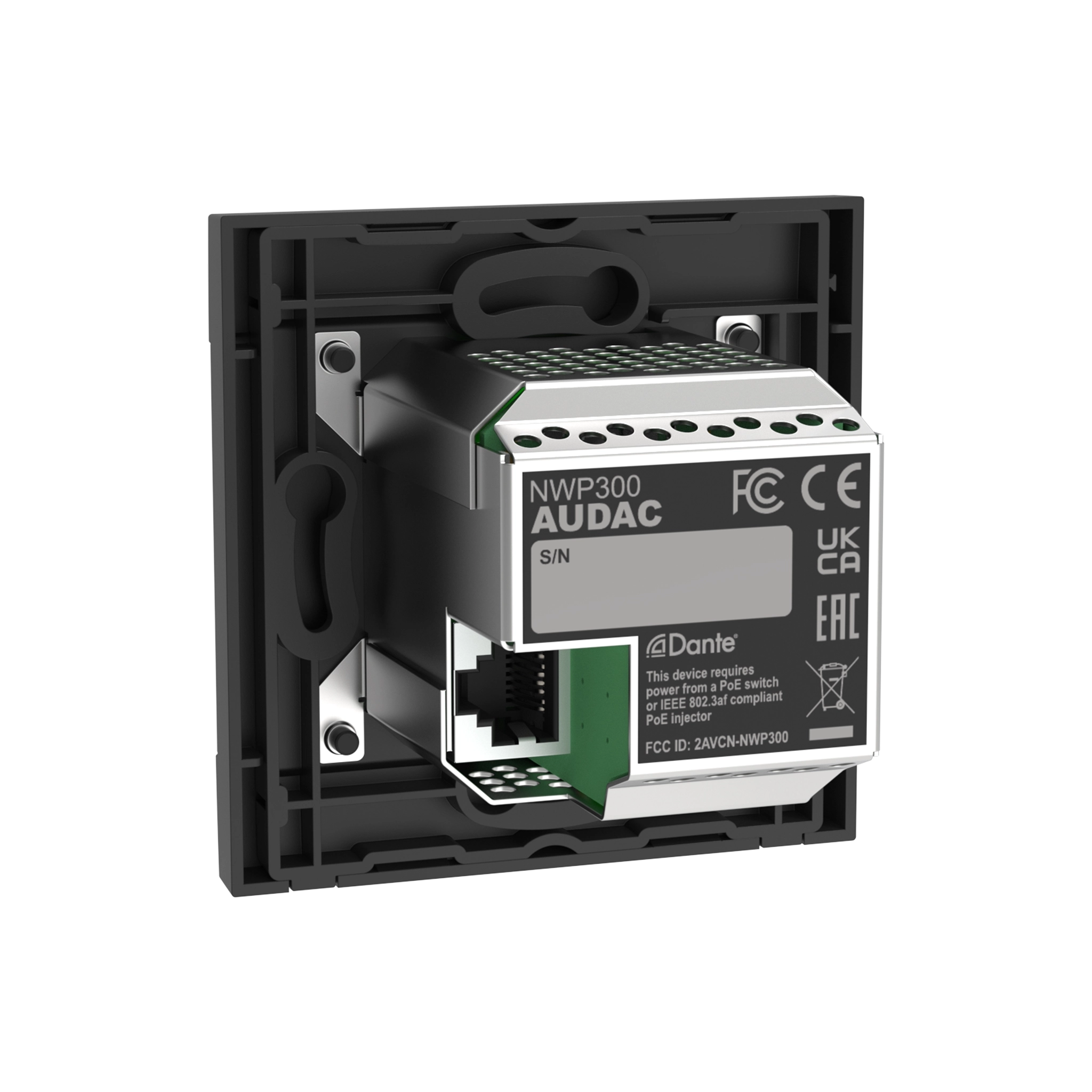

Connectors RJ45 (network + PoE)
  3.5 mm Jack stereo
Product Features
Construction ABS
Front finish Elegant ABS front panel with glass
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Colours White (RAL9003) (NWP300)
  Black (RAL9005) (NWP300/B)
Compatible devices Any Dante™/AES67 compatible audio device
Installation standard Compatible with EU installation materials
  1-gang US standard (NWP300US)

Description

The NWP300 is a Dante™/AES67 network input panel, featuring a single 3.5 mm stereo jack stereo input connection and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP300 is compatible with any PoE network-based installation.

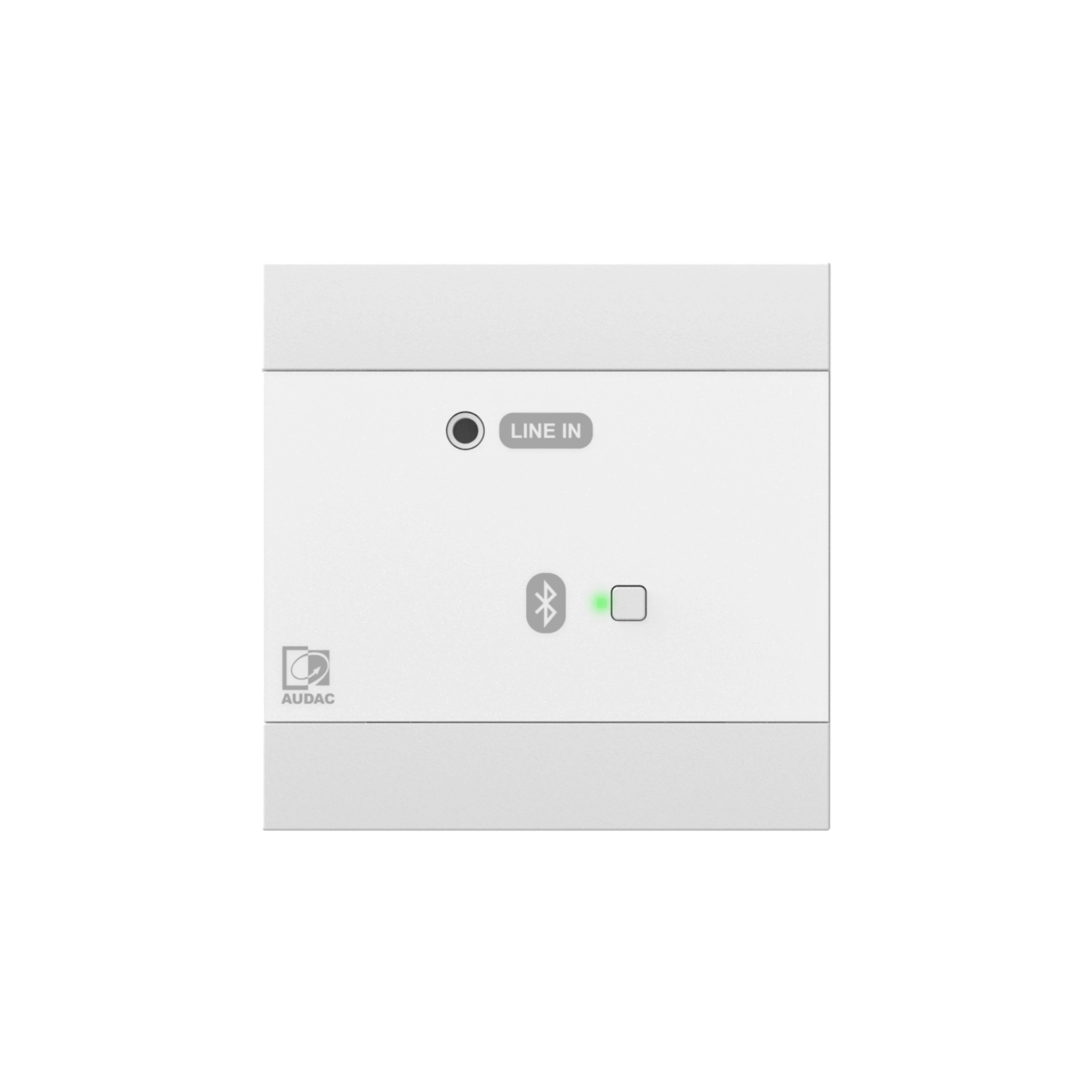

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
