Technical specifications

Available models

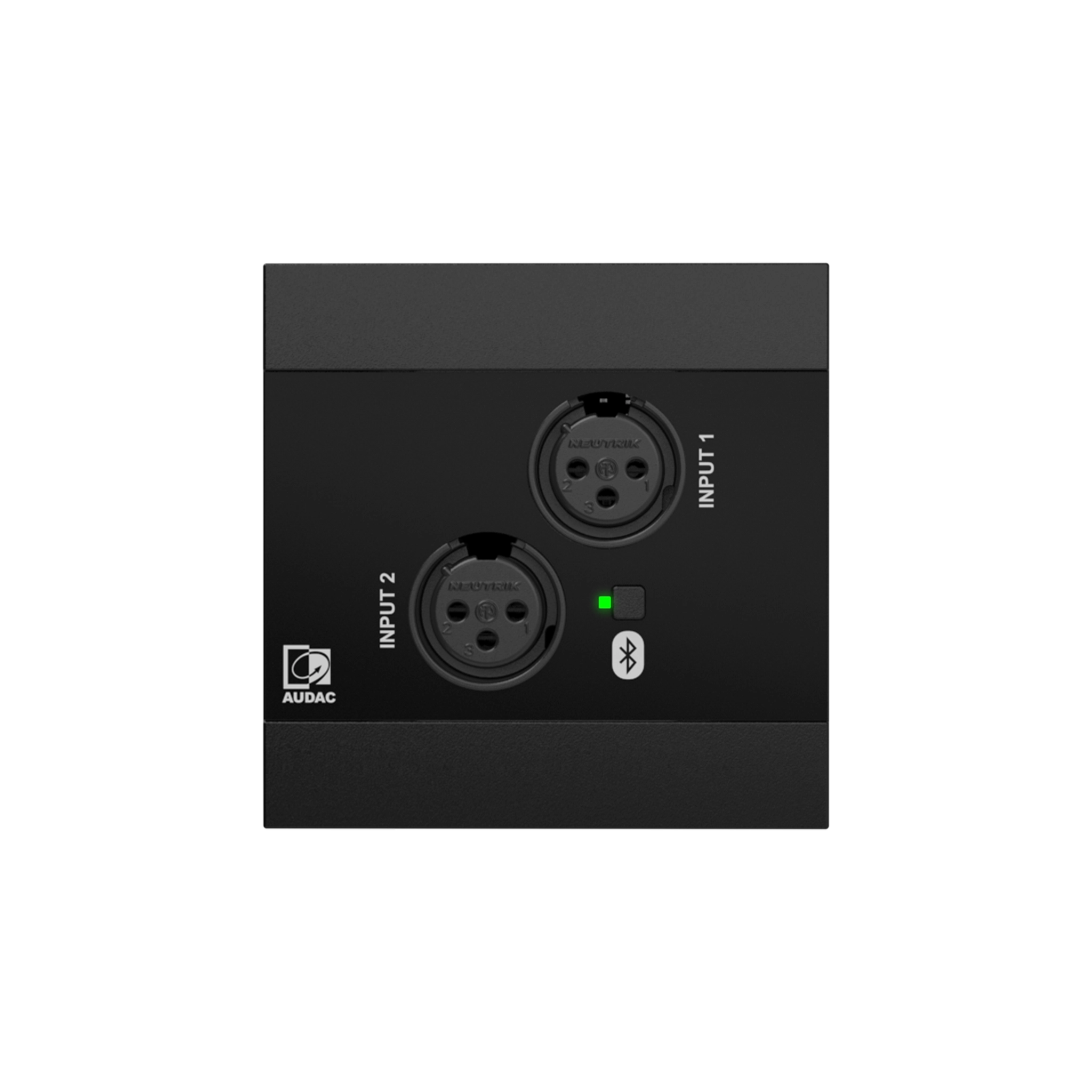

NWP220/B	Black version – EU-style standard

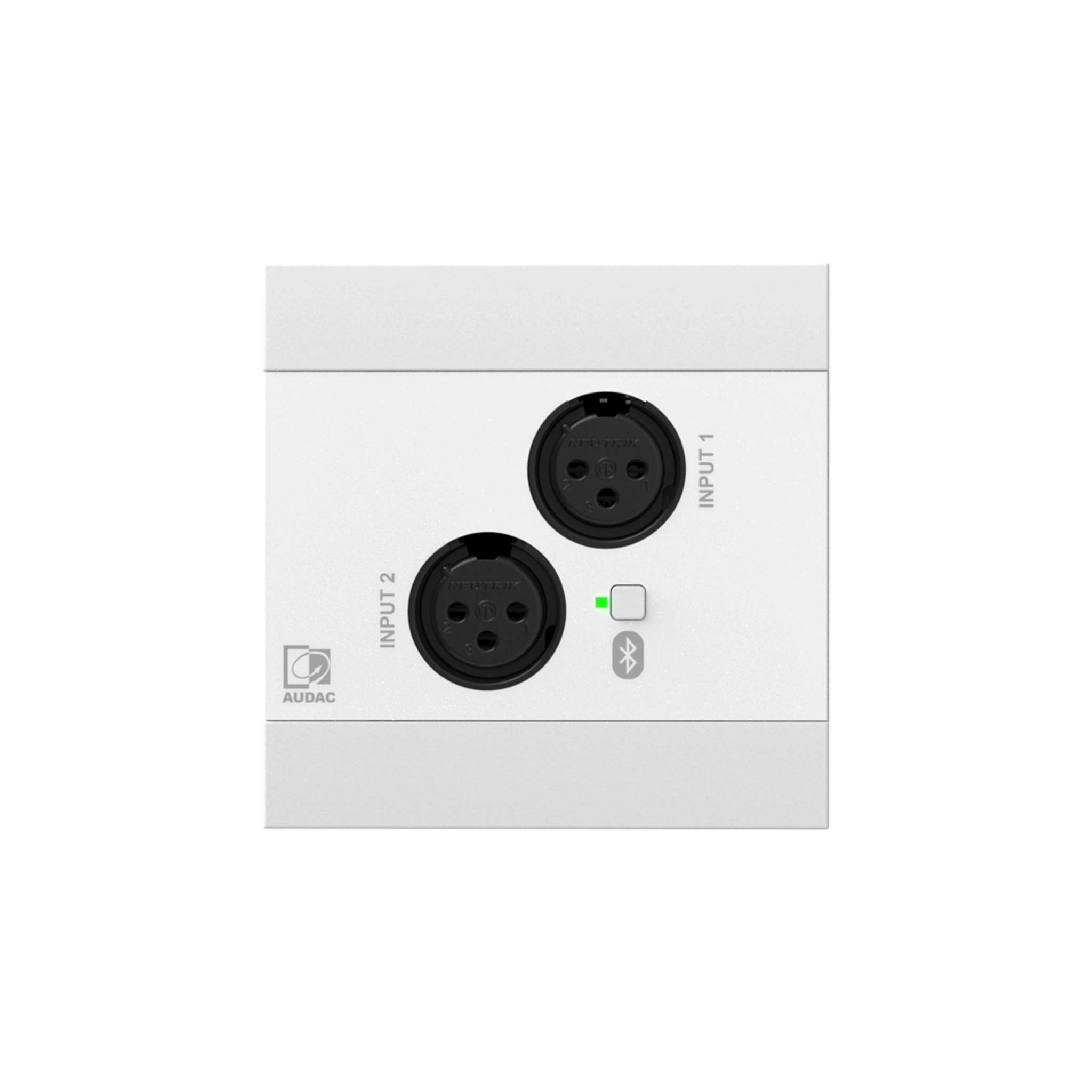

NWP220/W	White version – EU-style standard
NWP220US/B New	Black version – 1-gang US standard
NWP220US/W New	White version – 1-gang US standard

System specifications

Inputs		2 x XLR female (in)
Control		1 button – Bluetooth discoverable
Indicators		1 LED (RGB) – Bluetooth status
Configurable settings		IP settings
		Device name
		Input range (Mic / Line)
		Gain
		Phantom power
		DSP (EQ)
		Mixing
Configuration		Audac Touch™
Integrated DSP		Yes (EQ)
Automatic level control		Yes
Phantom power		+48 V DC
Power	Supply	PoE powered (IEEE 802.3at)

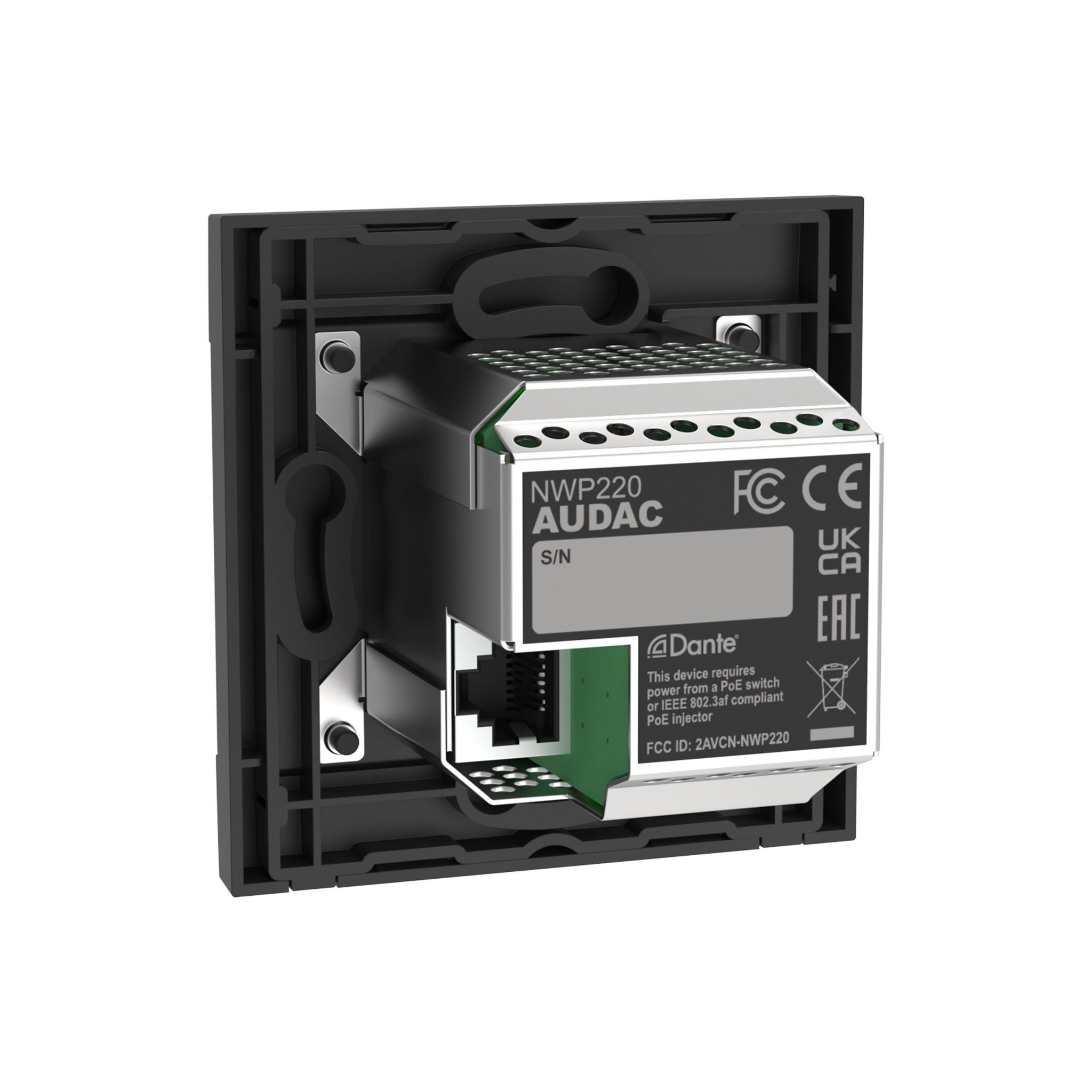

Connectors		RJ45 (network + PoE)
		1 x XLR female (audio in)

Product Features

Construction	ABS
Front finish	Elegant front panel with glass
Colours	Black (RAL9005) (NWP220/B)
	White (RAL9003) (NWP220/W)
Compatible devices	Any Dante™/AES67 compatible audio device
Dimensions	80 x 80 mm (W x H) (Remote wall panel)
Installation standard	Compatible with EU installation materials
	1-gang US standard (NWP220US)

Description

The NWP220 is a Dante™/AES67 network input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP220 is compatible with any PoE network-based installation.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
