KYRA24

Design column speaker 24 x 2″

Multi-functional wall bracket allowing swiveling and down-tilting
Slimline aluminum design
24 x 2″ high-quality broadband speakers

Technical specifications

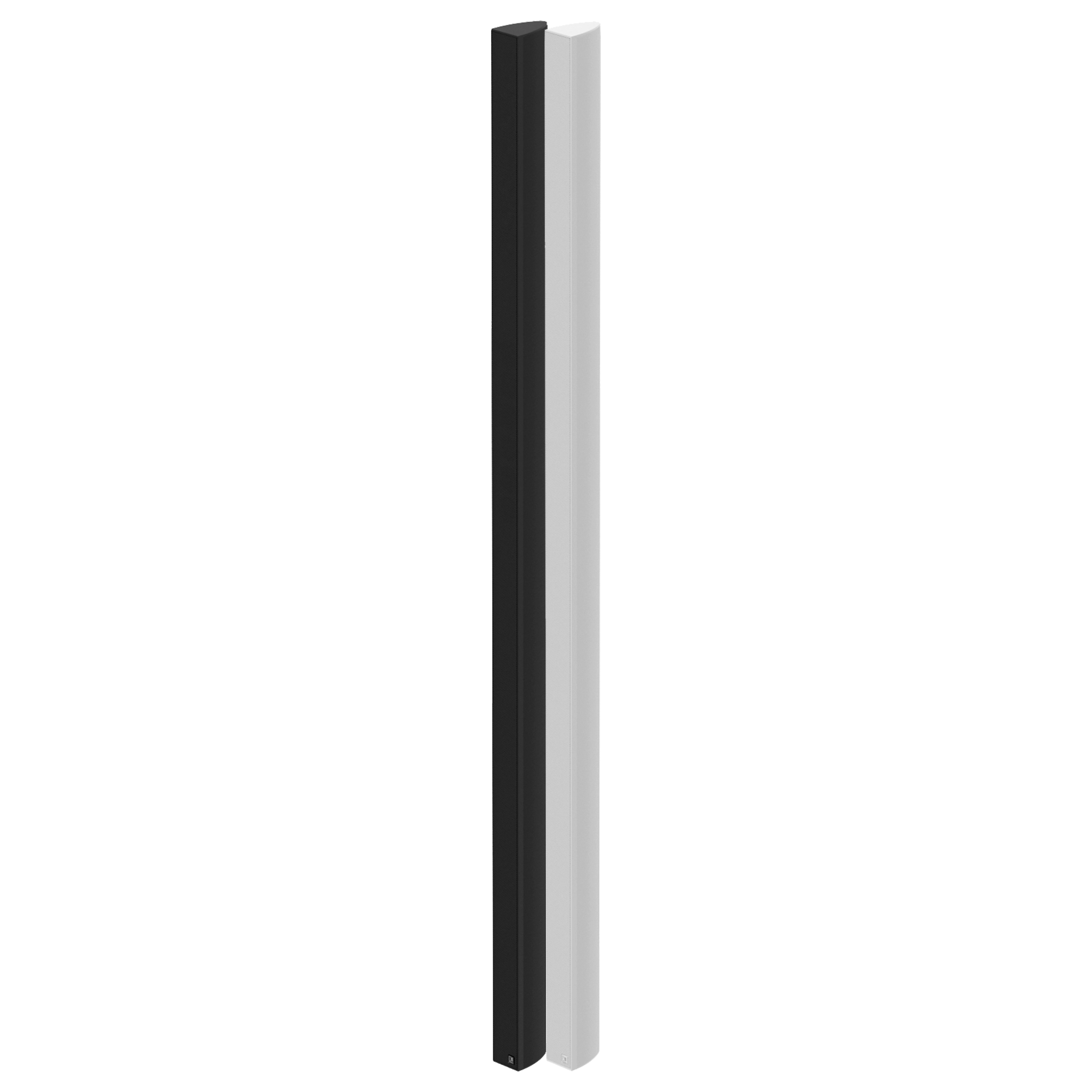

Available models

KYRA24/B	Black version

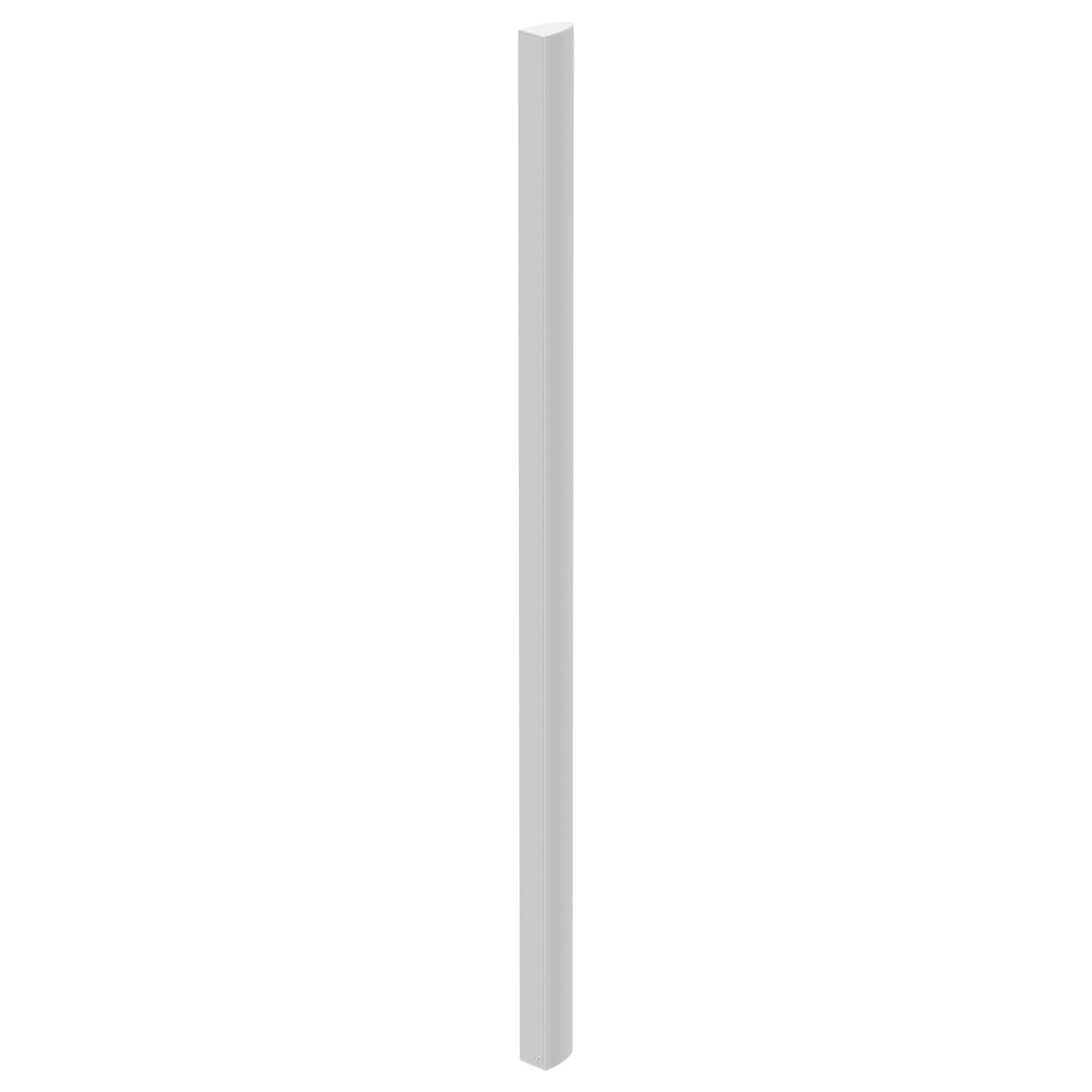

KYRA24/W	White version

System specifications

Speaker type		Broadband column
Peak power handling		960 W
Program power handling		480 W
Continuous power (AES)		240 W
Impedance		4 Ω
Sensitivity (1W/1m)		92 dB
Sound Pressure (Max. W/1m)		113 dB
Frequency	Range (-10 dB)	120 Hz – 20 kHz
	Response (± 3 dB)	150 Hz – 20 kHz
Drivers		24 x 2”
Ingress Protection rating		IP3x
Dispersion	Horizontal	174° (-6 dB avg 1 kHz – 4 kHz)
	Vertical	7° (-6 dB avg 1 kHz – 4 kHz)
Incline angle	Bottom	13°
	Left	42°
	Right	42°
Temperature	Operating	-20 – +50 °C

Product Features

Front finish		Steel grill
Construction		Aluminium with plastic side covers
Dimensions		70 x 2006 x 101 mm (W x H x D)
Colours		Black (KYRA24/B – RAL9005)
		White (KYRA24/W – RAL9003)
Accessories	Included	2-way Revolving mounting bracket
		1 x 3-pin Euro Terminal Block Input connectors

Categories: Audac, COLUMN LOUDSPEAKERS

Description

Description

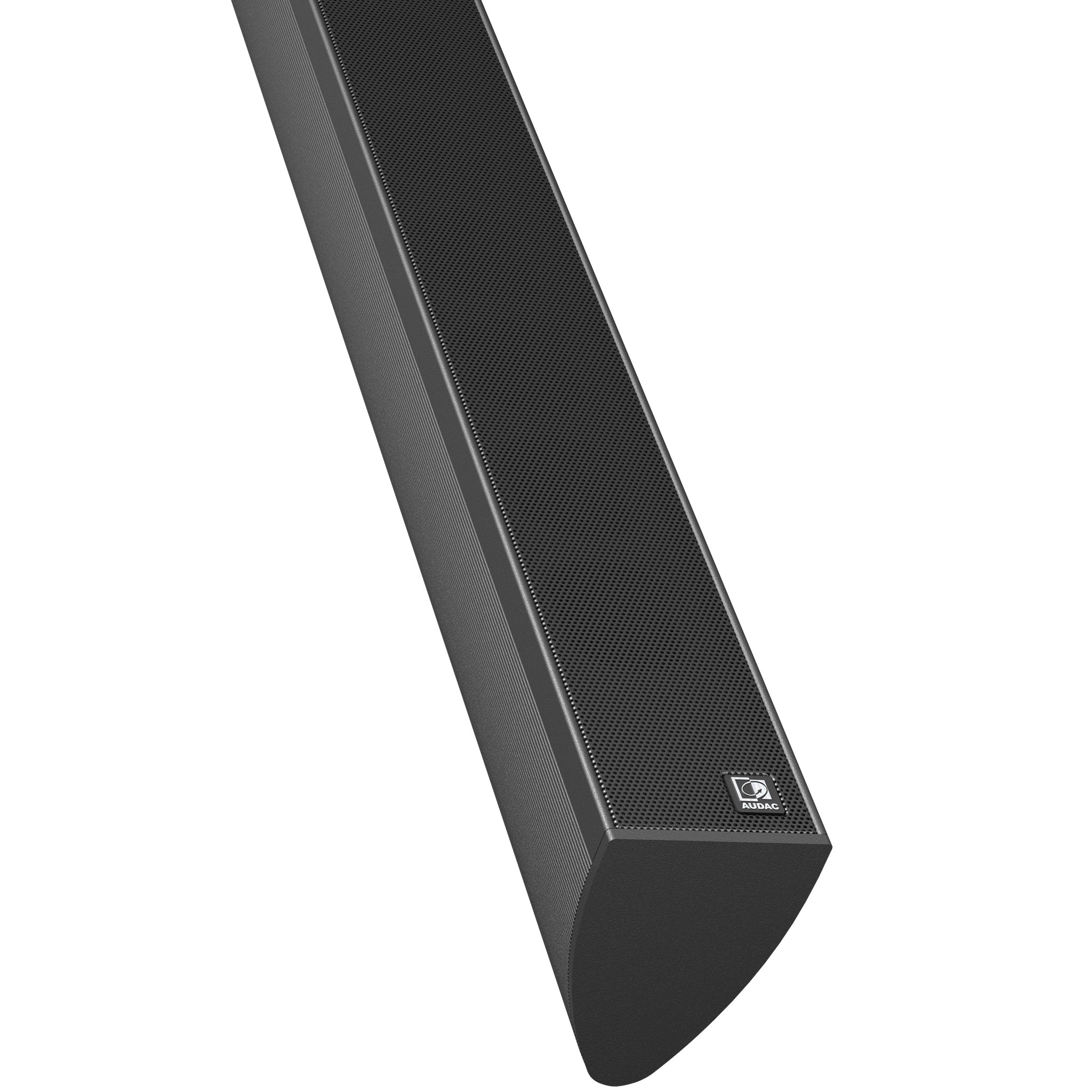

The KYRA24 design column speaker consists of 24 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 240 Watt and the beamwidth of 174° x 7° (-6 dB avg 1 kHz – 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.

The overall impedance of the speaker measures 4Ω, allowing it to be implemented in any low impedance audio system.

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB – 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.
