CSF506

Ceiling speaker with fire dome 100V

  • Multi-tapping 100V line transformer
  • 5″ full range driver
  • Steel front grill with flame retardant materials

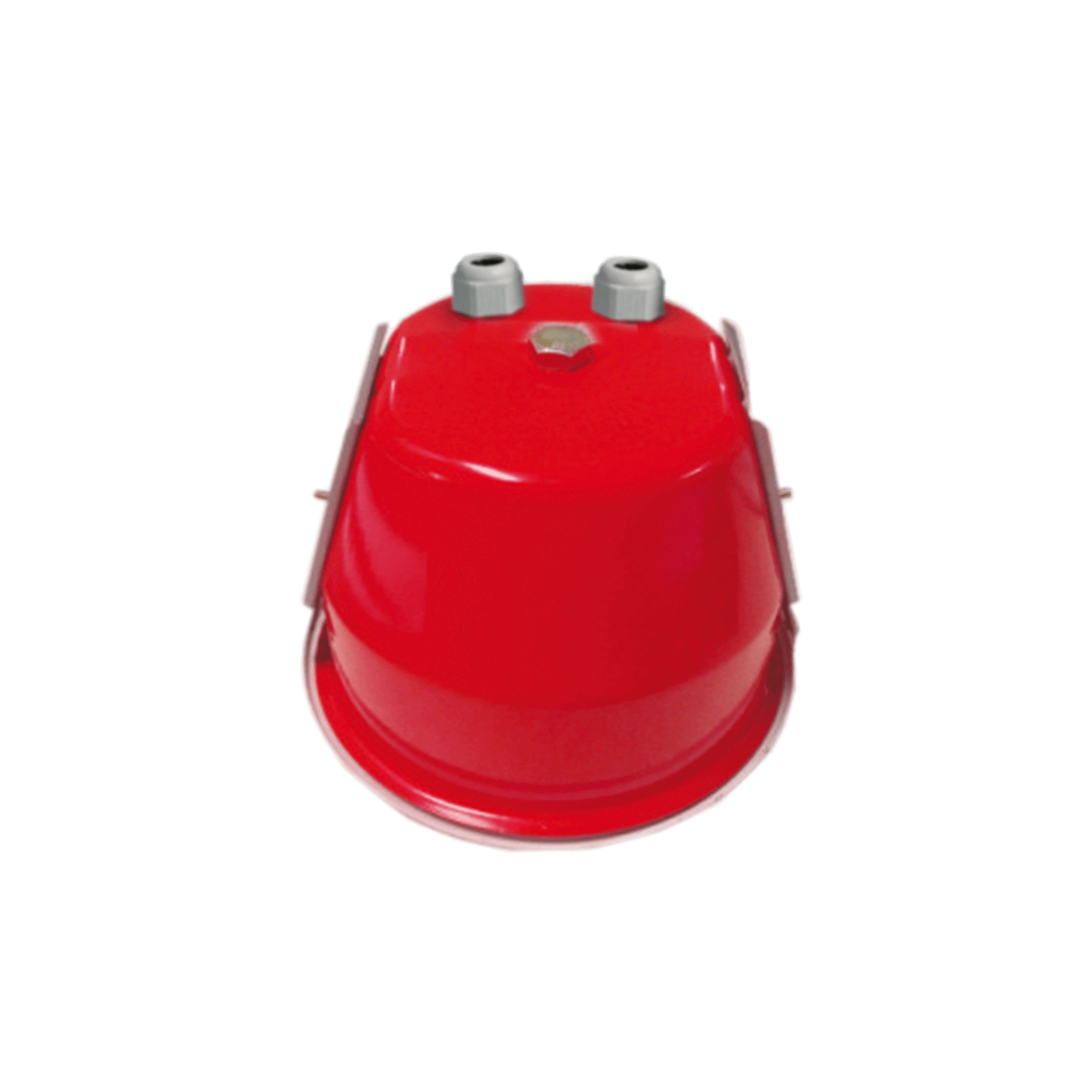

  • Steel fire protection dome

Technical specifications

Available models
CSF506/W  White version – RAL9010
System specifications
Speaker type Broadband
Peak power handling 20 W
Program power handling 10 W
Continuous power (AES) 6 W
Line Transformer Tappings 1 6 W / 1666 Ω
  2 3 W / 3333 Ω
Impedance 8 Ω
Frequency Response (± 3 dB) 90 Hz – 18 kHz
Sound Pressure (Max. W/1m) 90 dB
Drivers 5”
Product Features
Dimensions 180 x 127 mm (Ø x D)
Cut-out measurement 160 mm (Ø)
Weight 1.300 kg
Construction Steel fire protection dome
Front finish Steel with flame retardant materials


Description

The CSF506/W is a fire-protected ceiling speaker with a 5″ cone, capable of producing a power of 6 Watt. It ensures a good reproduction of speech and background music. It is fitted with a 100V line transformer with power taps for 6 Watt and 3 Watt to be used in large 100V PA systems. The speaker is equipped with a special steel fire protection dome fitted around the speaker and a steel front grill with flame-retardant materials. The MK2 version is painted in RAL9016, to harmonize the AUDAC ceiling speaker range we decided to bring out the CSF506/W variant in RAL9010.
