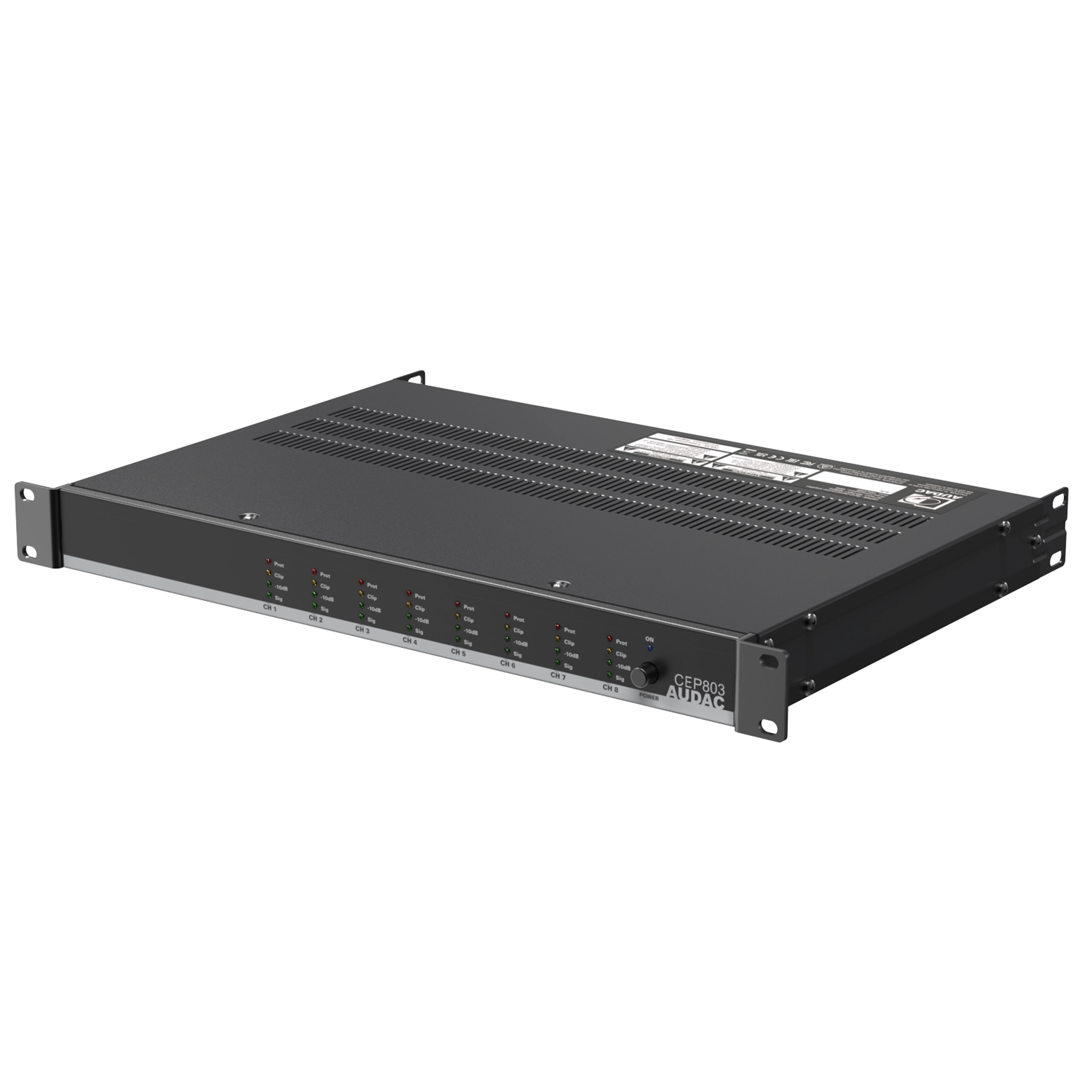

CEP803

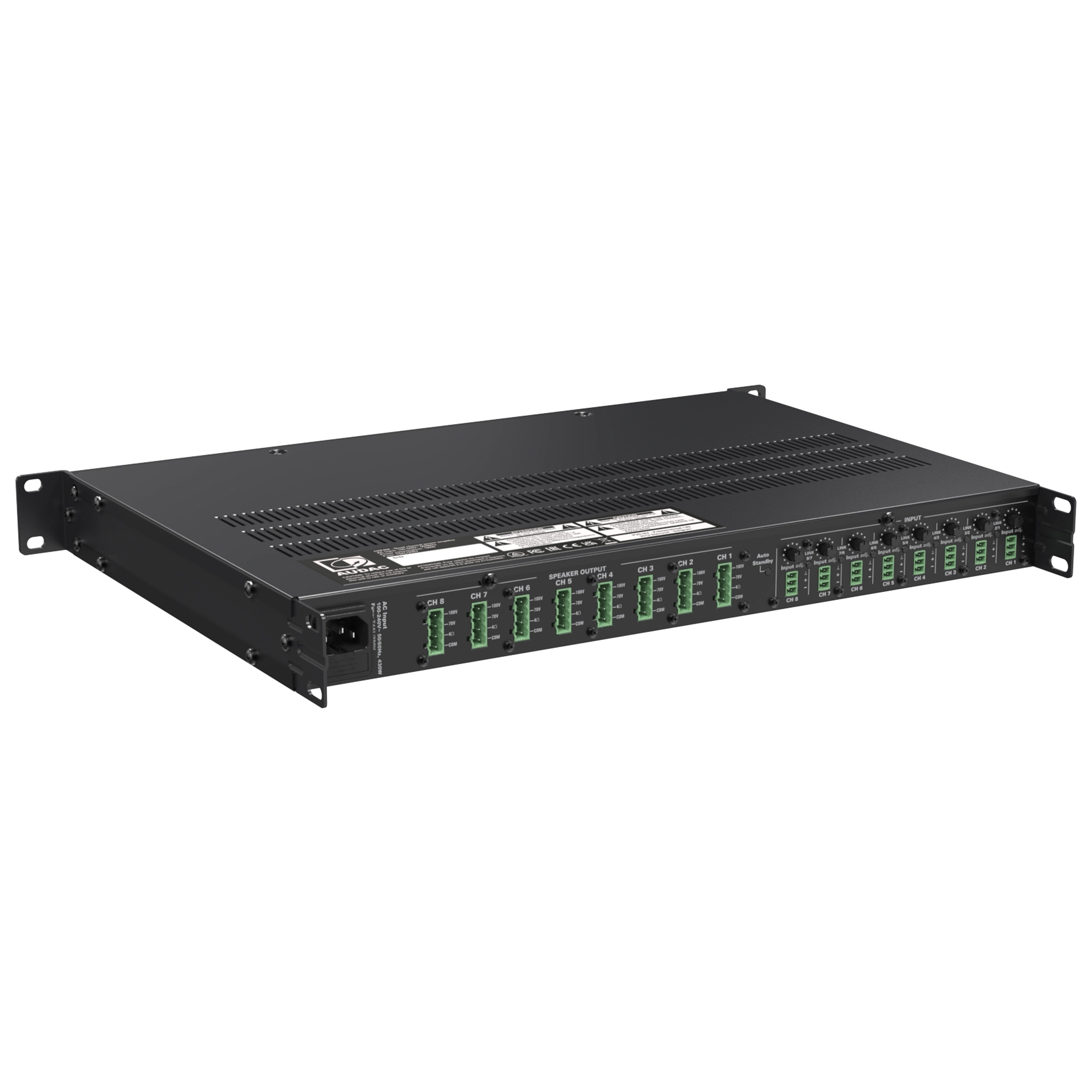

CEP803 - Image 2

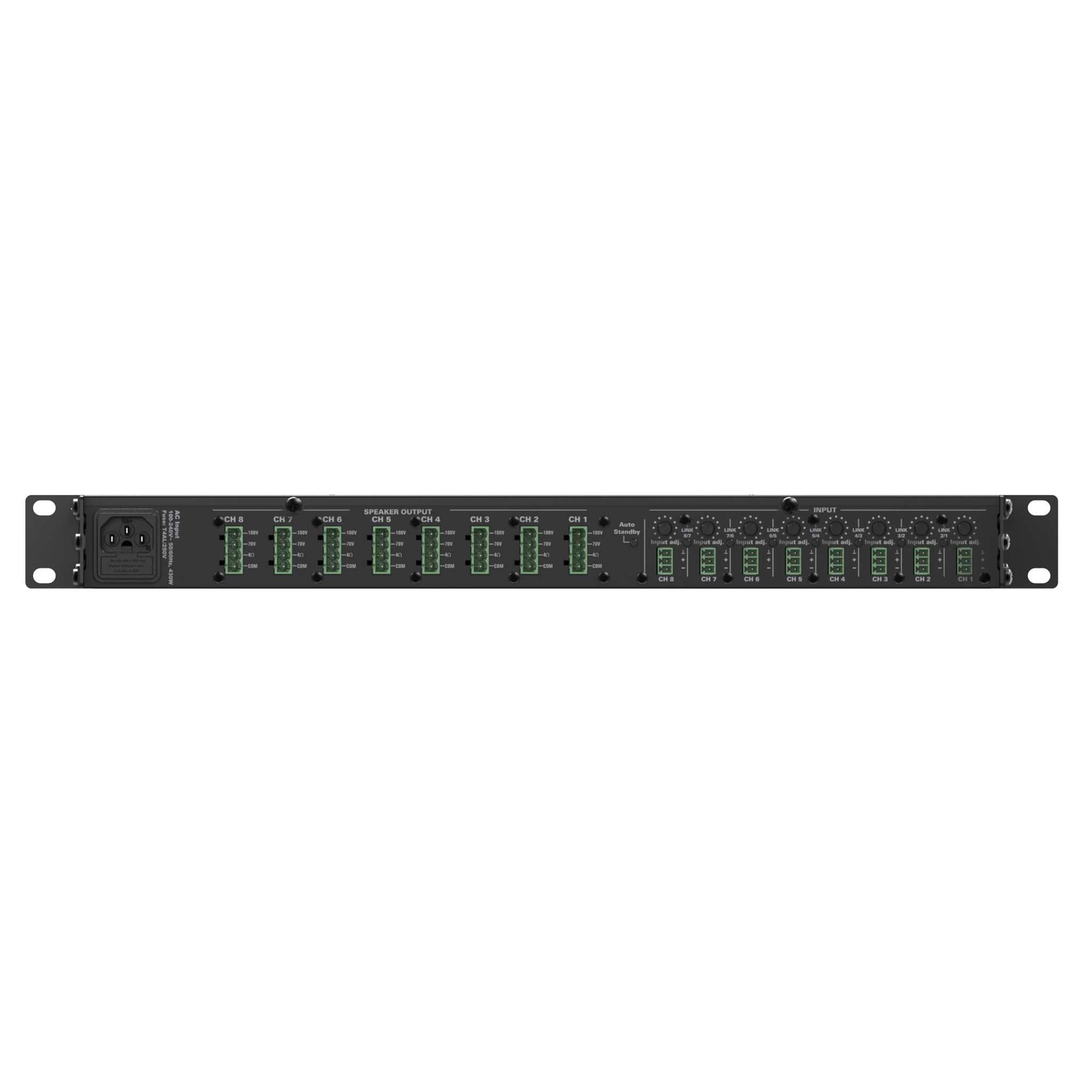

CEP803 - Image 3

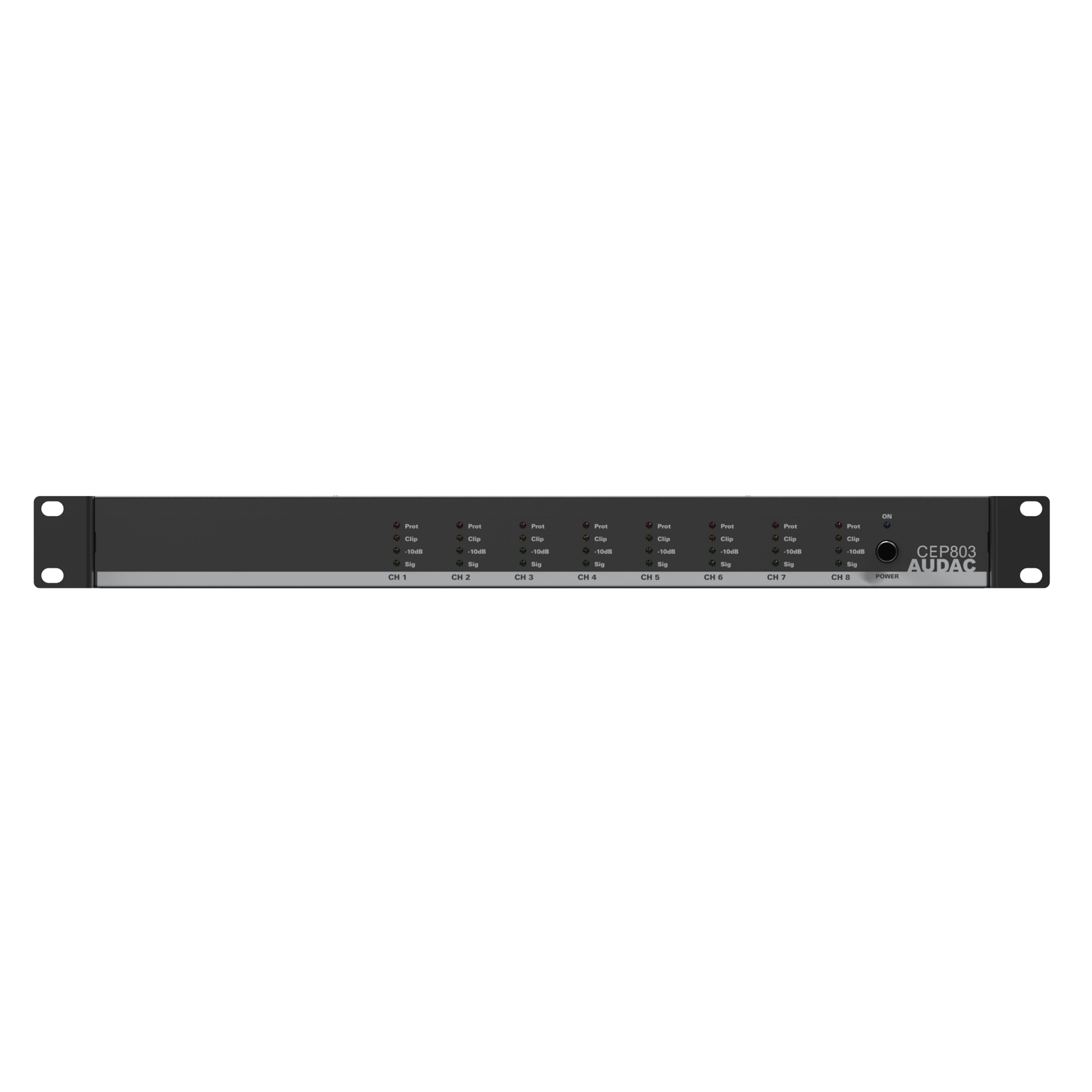

CEP803 - Image 4

CEP803

Octo channel 4 Ohm energy-efficient amplifier – 8 x 30W – 70/100V

  • Energy star certified
  • Terminal block input connections
  • Input linking through miniature switches
  • Terminal block output connections
  • Compact and lightweight design
  • Class-D amplifier technology

Technical specifications

System specifications
Continuous power (AES) @ 4 Ω 8 x 30 W
  @ 70 V 8 x 30 W
  @ 100 V 8 x 30 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz) < 70 dB
Frequency Response (± 3 dB) 110 Hz – 20 kHz
Technology Class-D
Protection DC Short circuit
  Over heating
  Over load
  Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Power Supply Switching mode
  Source 100 ~ 240 V AC / 50 ~ 60 Hz
  Consumption Standby 0.6 W
    Idle 17.5 W
    Nominal (1/3 MUP) 150 W
    Nominal (1/8 MUP) 68 W
Inputs Connector IEC C14 Connector
  Input linking through miniature switches
  Connector 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Outputs Connector 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Inputs Sensitivity -0.5 dB ~ 10.5 dB
Outputs Voltage / Impedance 4 Ω
    70 V / 167 Ω
    100 V / 333 Ω
Product Features
Mounting 19”
Unit height 1 HE
Colours Black
Dimensions 482 x 44 x 335 mm (W x H x D)
Weight 6 kg
Construction Steel

Categories: ,

Description

The CEP series are professional 70/100V multi-channel energy-efficient amplifiers. The one unit height device comes into two models. The CEP803 offers eight channels and has an output power of 30 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications. With its compact and lightweight design, the CEP series is designed with high efficiency and reliability by providing input linking through miniature switches at the back of the device in combination with Class-D amplifier technology. These switches allow daisy linking inputs from one channel to another by simply pressing the switch.

The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. The input connections are performed with 3-Pin Terminal block connectors while the output connections are performed with a 4-pin Terminal block connector.

The multi-channel amplifier is Energy Star compliant yet can be enabled or disabled with a standby switch on the back of the device. This amplifier is an HE (1RU) 19” unit. In order to ensure maximum installer/maintenance convenience, the CEP is passively cooled.
