CALI660

Safelatch™ 2-way 6.5″ ceiling speaker with TwistFix™ grill

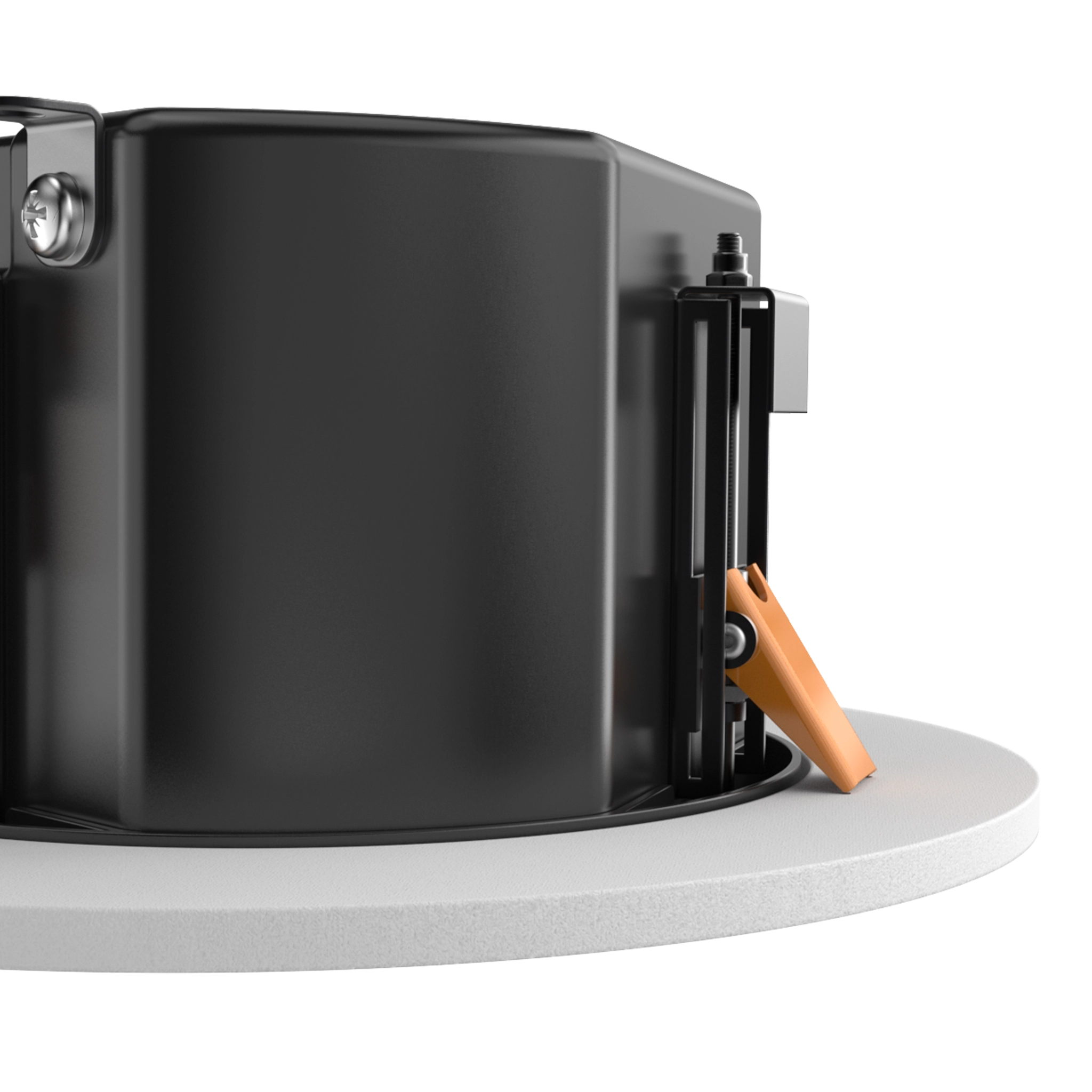

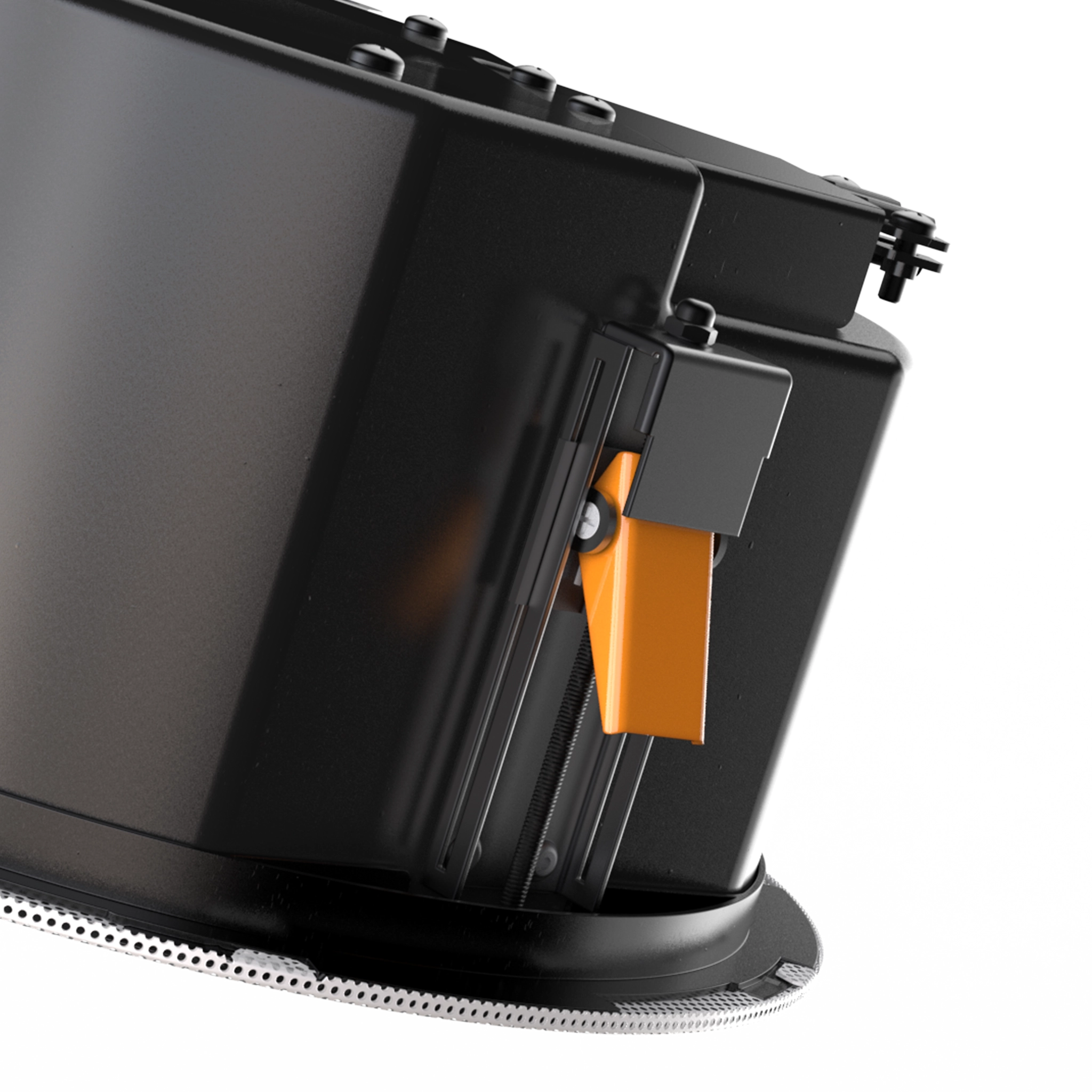

Secure SafeLatch™ system
Excellent off-axis performance (up to 145°)

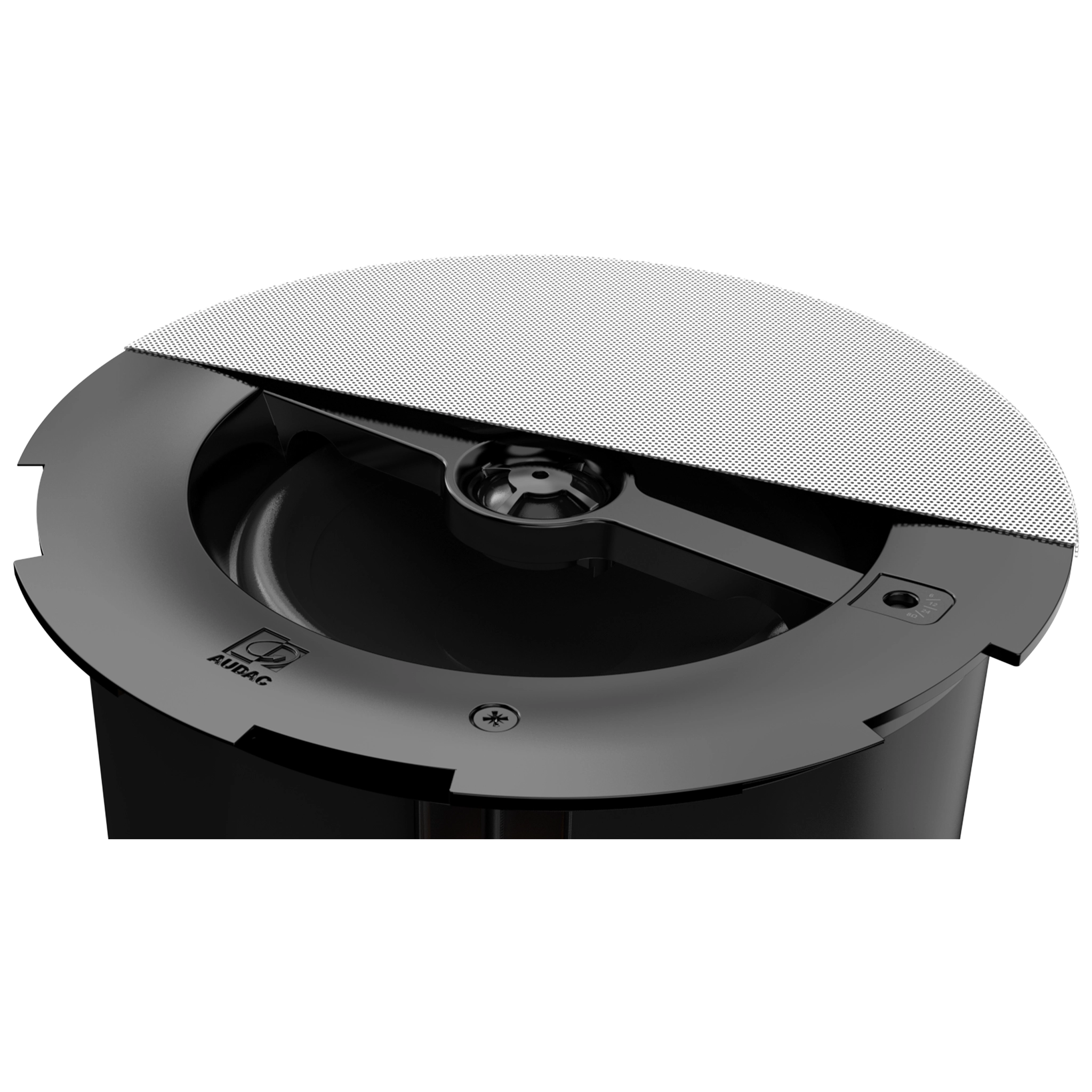

Unique TwistFix™ grill design

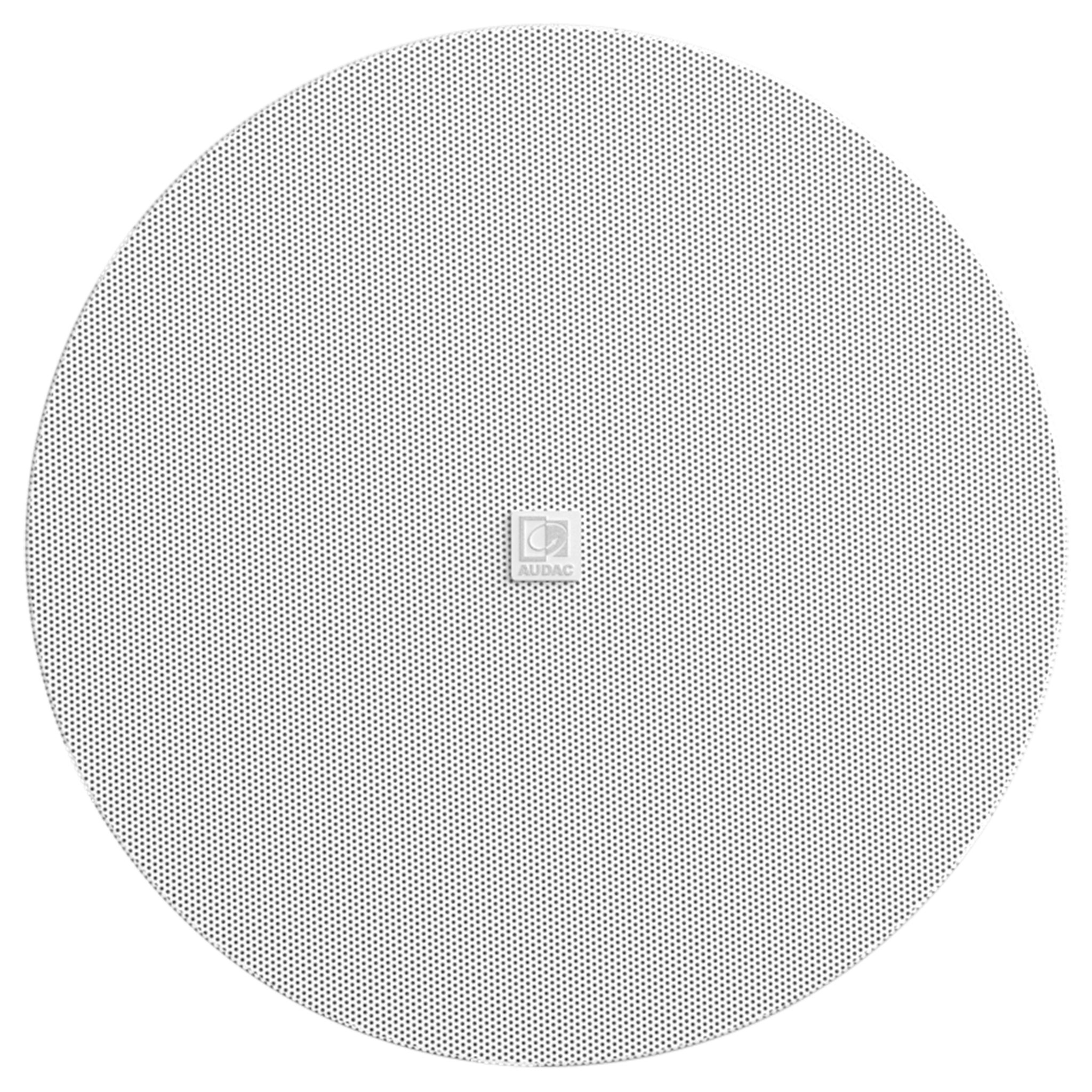

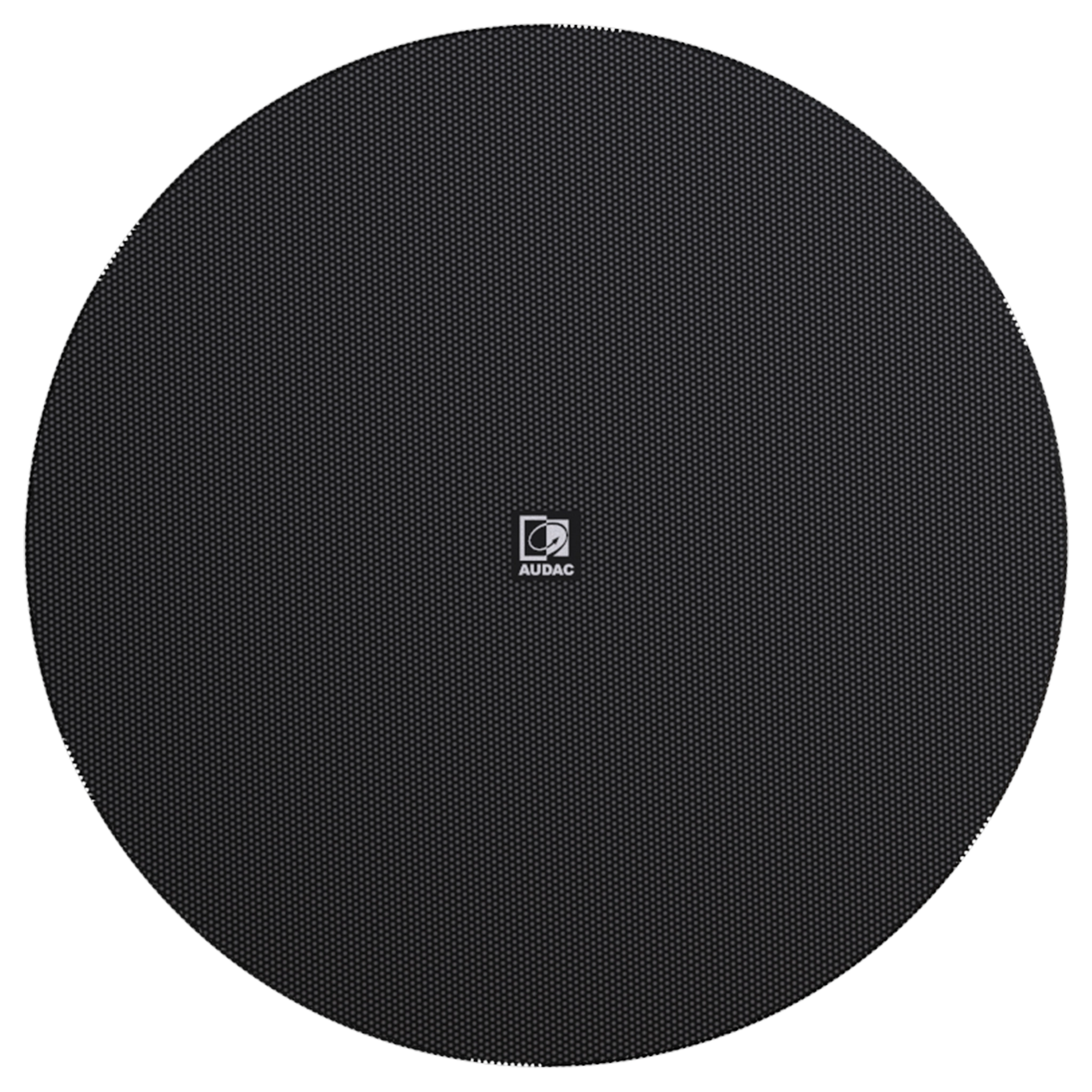

Borderless grill design
Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings

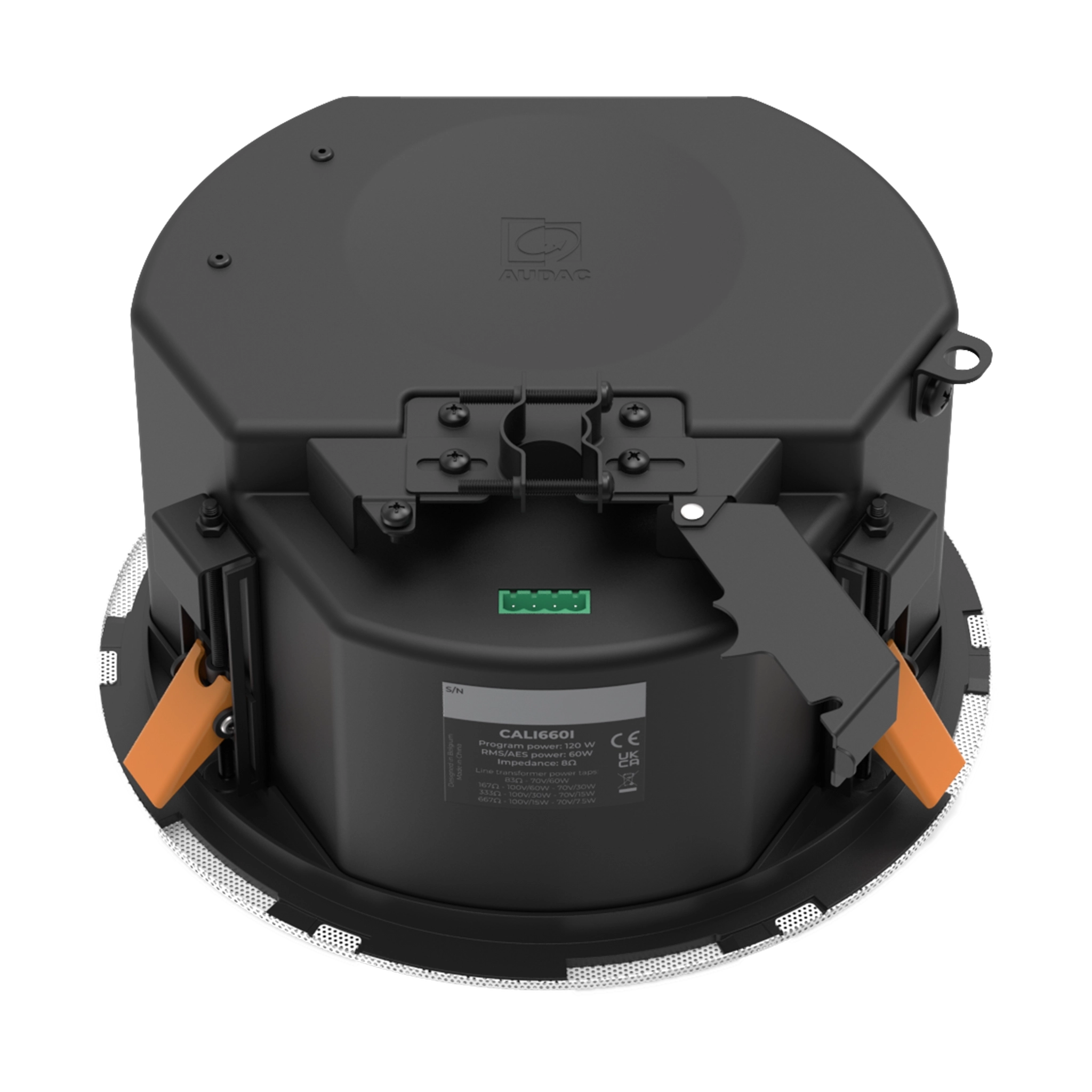

Terminal block connection
Shallow built-in depth (132 mm)
Multi-tapping 70V / 100V line transformer

Technical specifications

Available models

CALI660I/W

White version (RAL9016)

Expected models

CALI660II/WComing soon

White version (RAL9016)

System specifications

Peak power handling		240 W
Program power handling		120 W
Continuous power (AES)		60 W
Sound Pressure (Max. W/1m)	@ 100 V	(CALI660) 106 dB
		(CALI660I & CALI660II) 108 dB
	@ 8 Ω	(CALI660I & CALI660II) 108 dB
Sensitivity (1W/1m)		(CALI660) 87 dB
		(CALI660I & CALI660II) 90 dB
Dispersion	Conical	145°
Frequency	Response (± 3 dB)	90 Hz – 20 kHz
	Range (-10 dB)	70 Hz – 20 kHz
Speaker type		2-way coaxial
Connection		Ceramic screw terminal with link through (CALI660)
		Pluggable terminal block connector with link-through (CALI660I & CALI660II)
Line Transformer Tappings	1	83 Ω – 100 V / Not used – 70 V / 60 W
	2	167 Ω – 100 V / 60 W – 70 V / 30 W
	3	333 Ω – 100 V / 30 W – 70 V / 15 W
	4	667 Ω – 100 V / 15 W – 70 V / 7.5 W

Product Features

Cut-out measurement	220 mm (Ø)
Dimensions	(CALI660) 242 x 120 mm (Ø x D)
	(CALI660I & CALI660II) 242 x 138 mm (Ø x D)
Built-in depth	(CALI660) 120 mm
	(CALI660I & CALI660II) 132 mm
Operating temperature	-20 °C ~ 60 °C
Construction	ABS and powder coated steel
	Additional weatherproof & humidity proof coating to the speaker cone (CALI660II)
Mounting	SafeLatch™ mounting system
Weight	3.42 kg

Categories: Audac, CEILING LOUDSPEAKERS

Description

Description

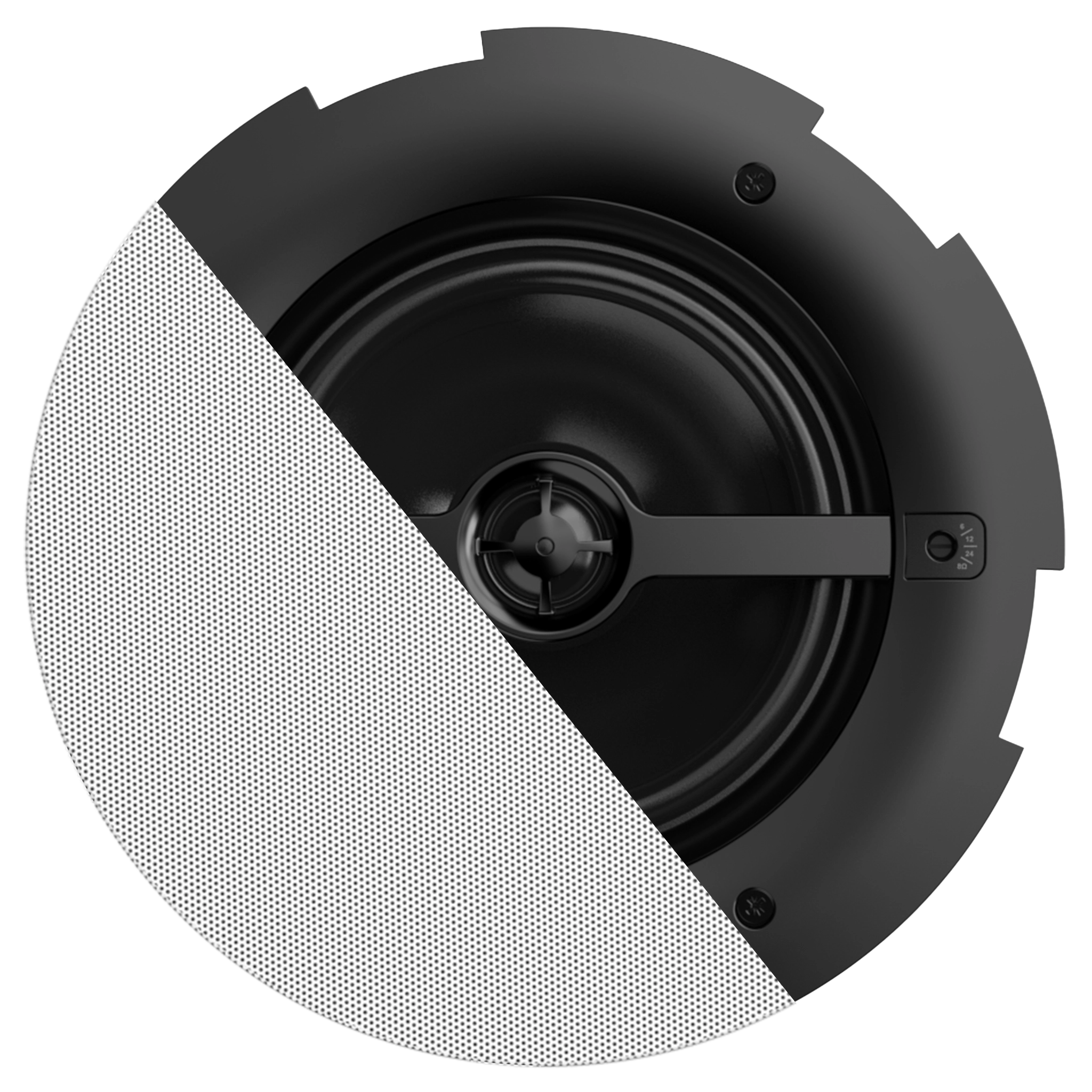

The CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 145°.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.
