CALI424

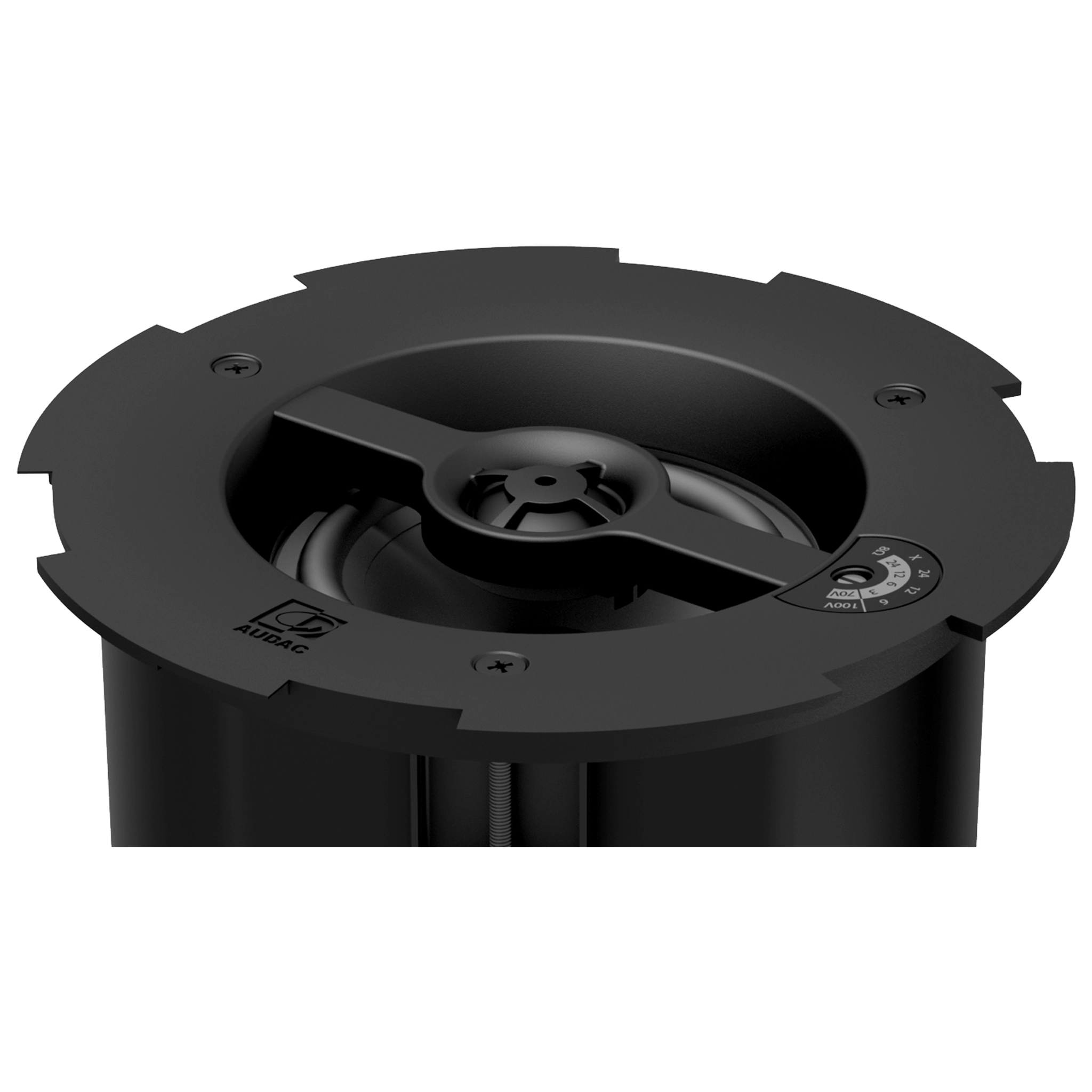

Safelatch™ 2-way 4″ ceiling speaker with TwistFix™ grill

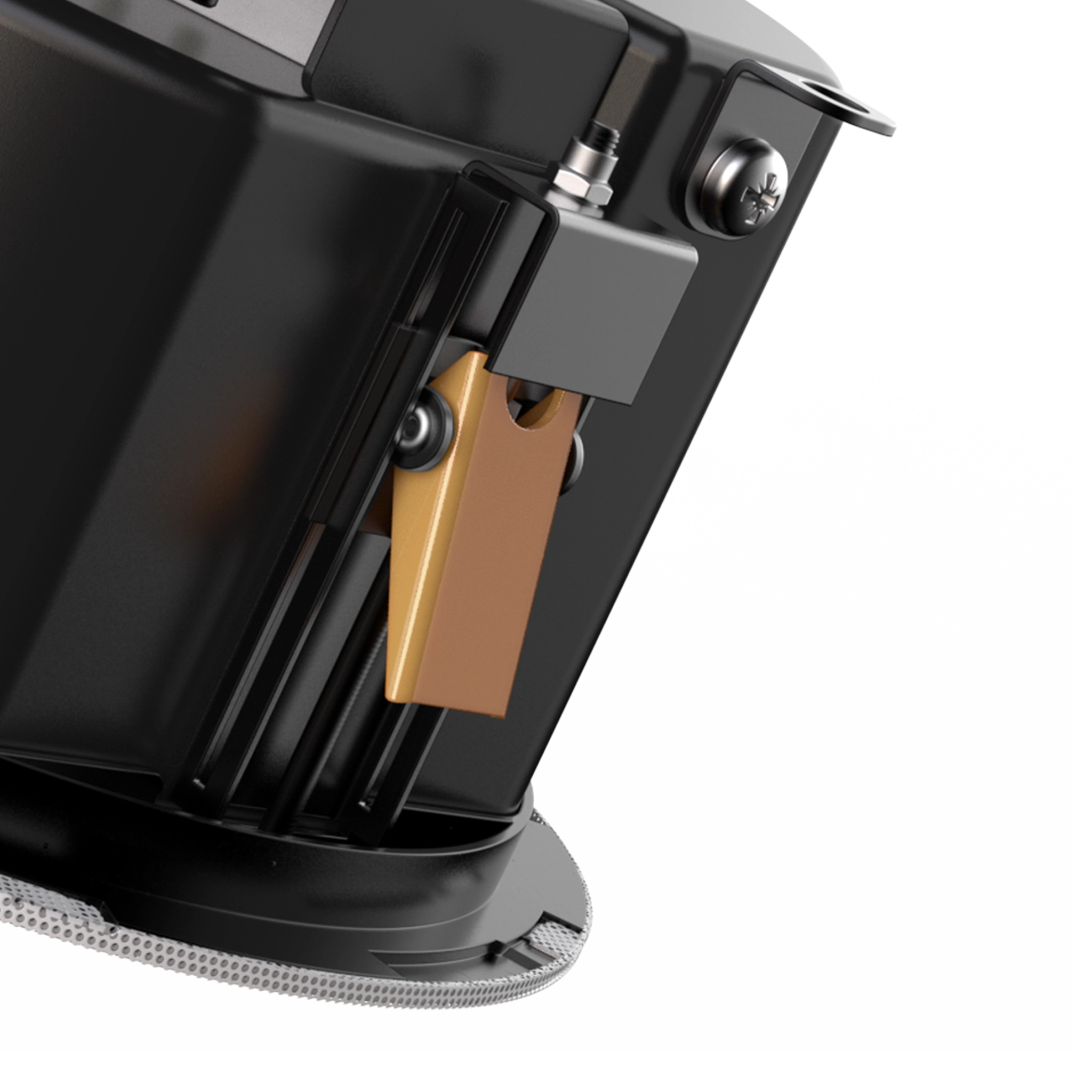

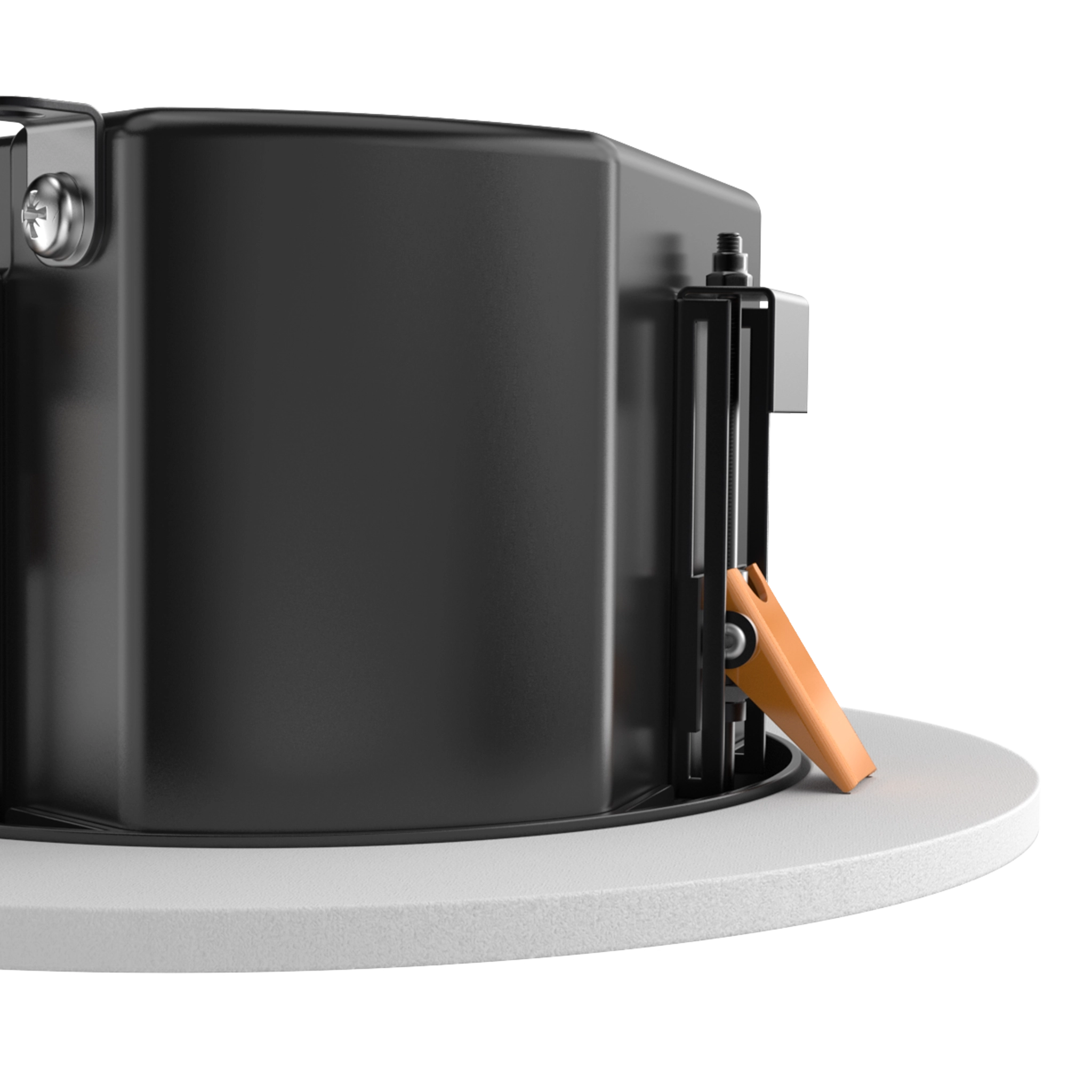

Secure SafeLatch™ system
Excellent off-axis performance (up to 155°)

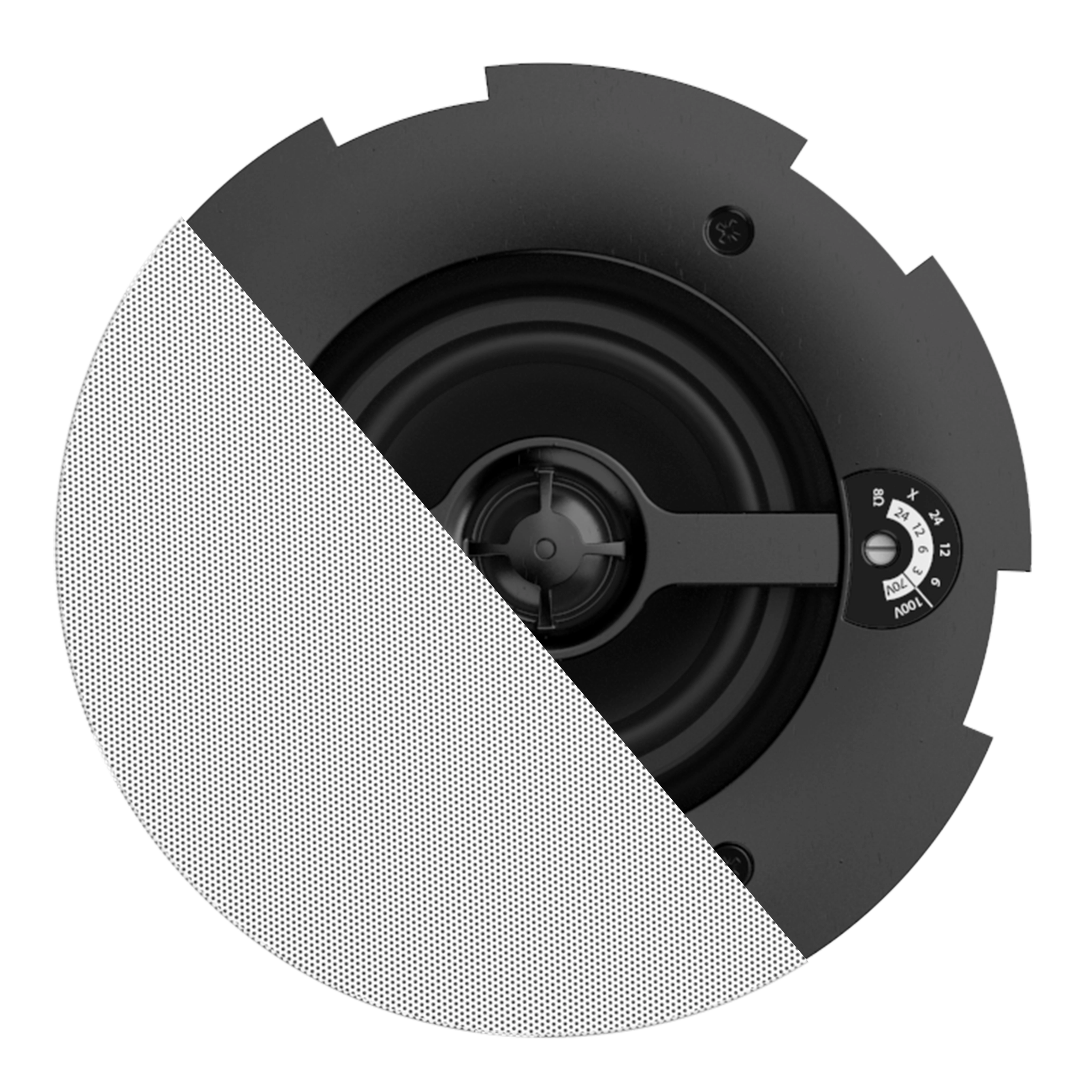

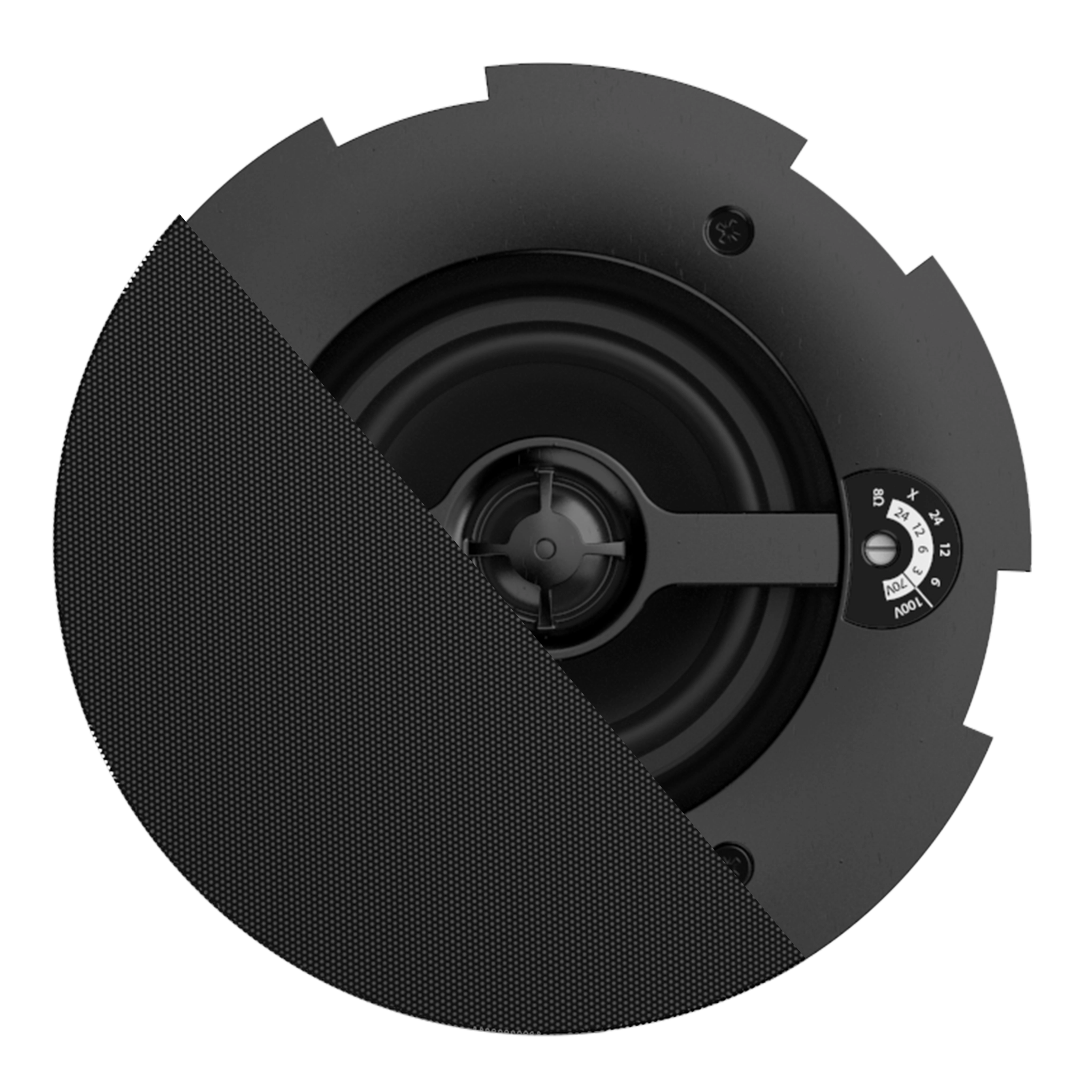

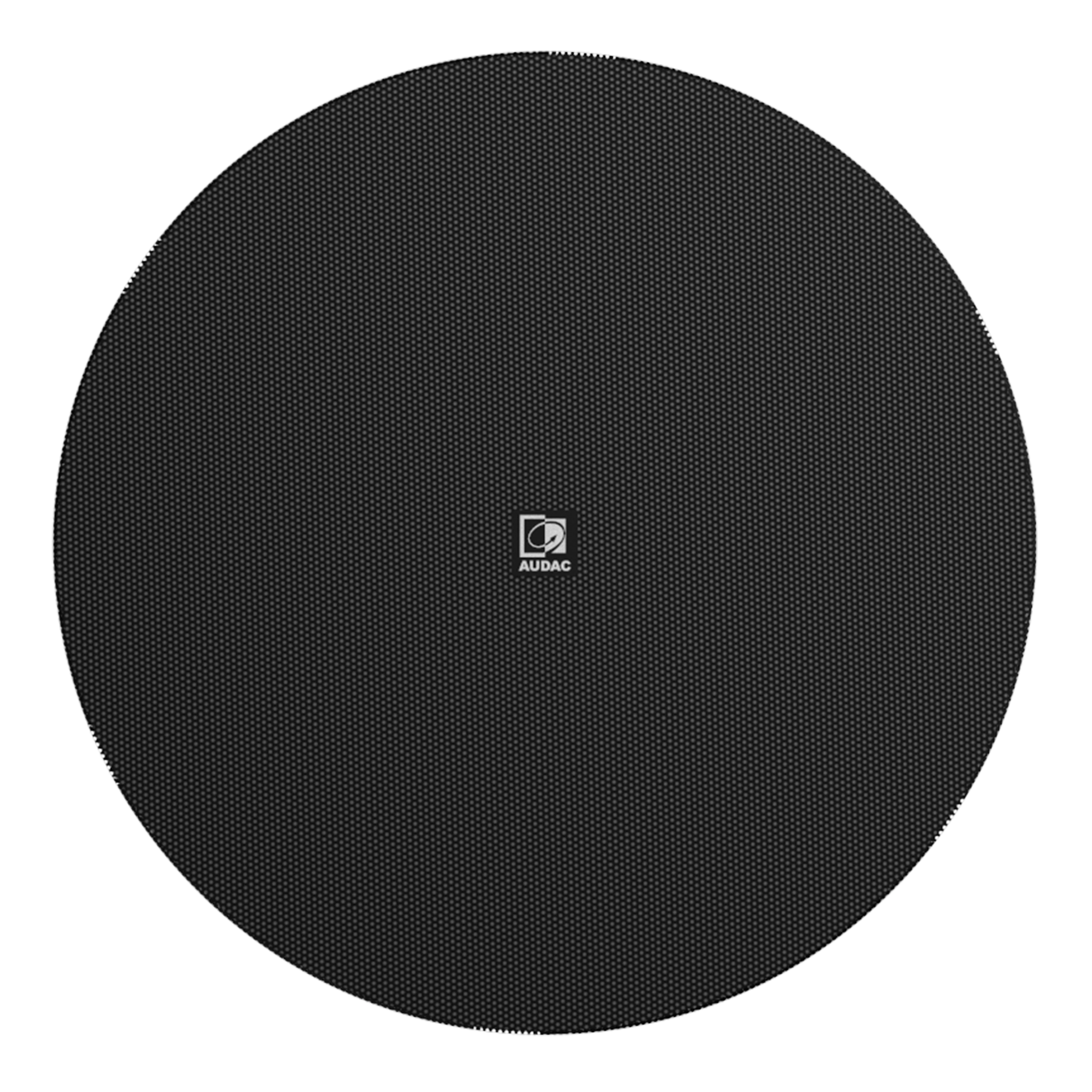

Unique TwistFix™ grill design

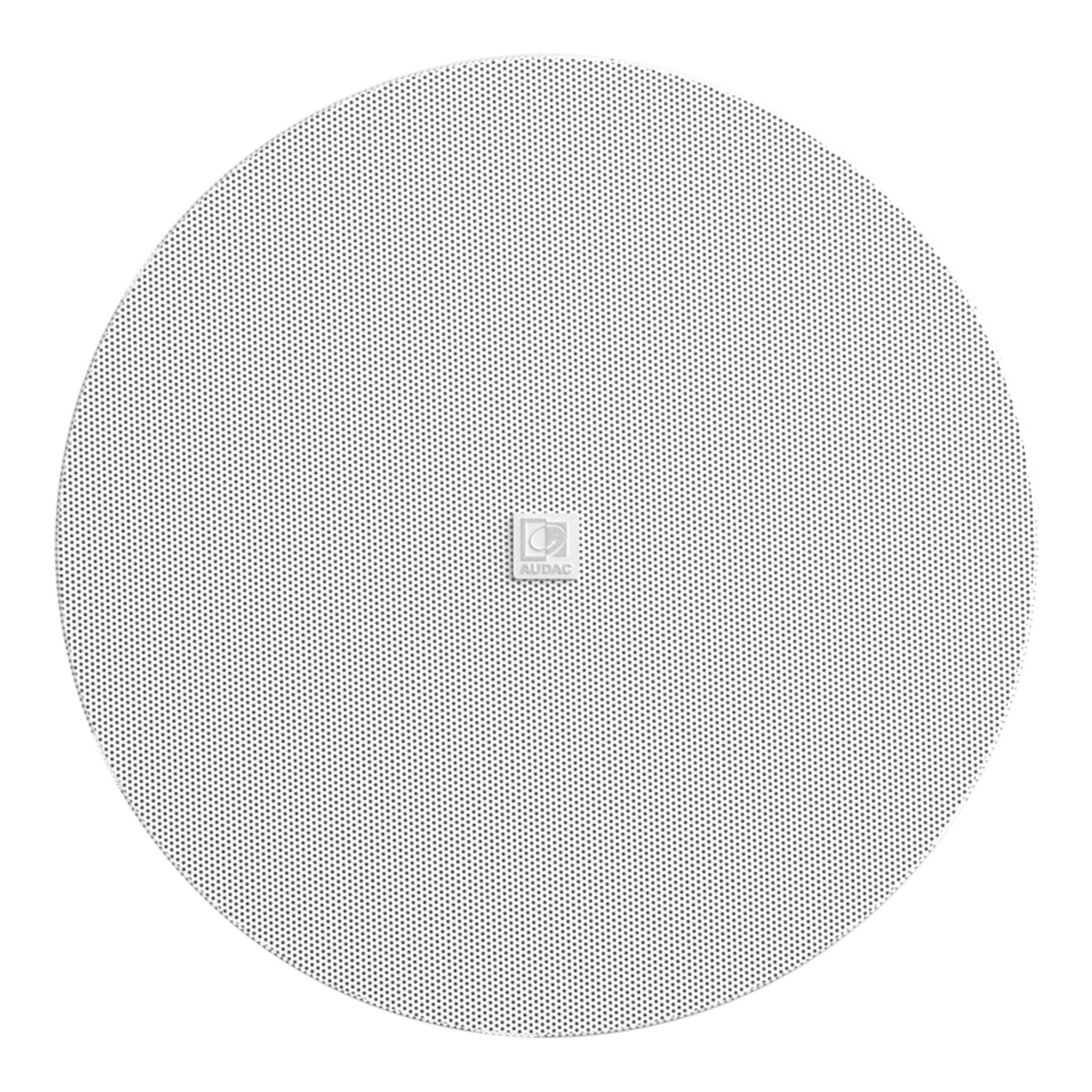

Borderless grill design

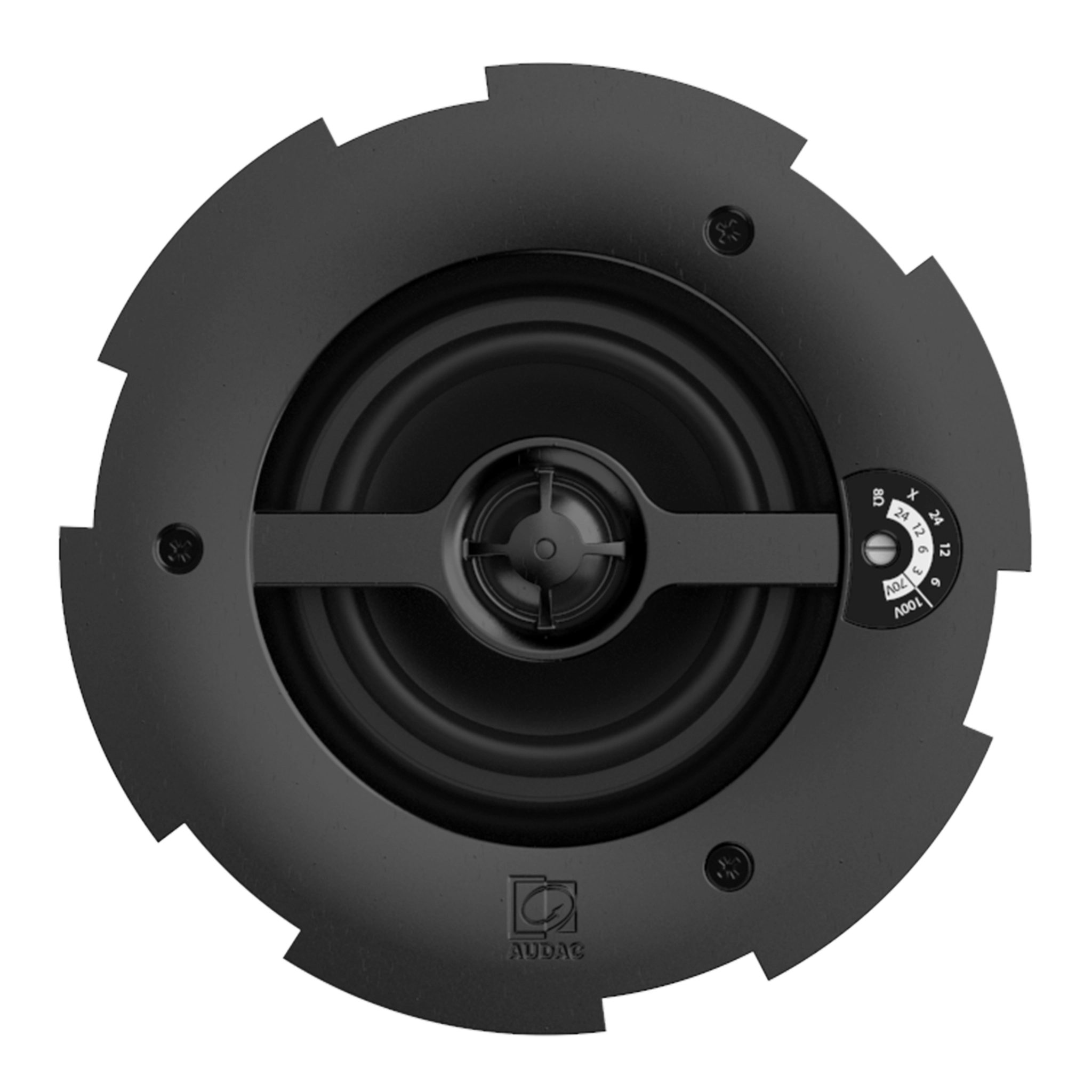

Rotary switch for 6W, 12W, 24W and an 8 Ohm tappings
Terminal block connection
Shallow built-in depth (122 mm)
Multi-tapping 70V / 100V line transformer

Technical specifications

Expected models

CALI424II/WComing soon

White version (RAL9016)

System specifications

Peak power handling		120 W
Program power handling		60 W
Continuous power (AES)		30 W
Sound Pressure (Max. W/1m)	@ 100 V	(CALI424) 101 dB
		(CALI424I & CALI424II) 101 dB
	@ 8 Ω	(CALI424I & CALI424II) 102 dB
Sensitivity (1W/1m)		(CALI424) 84 dB
		(CALI424I & CALI424II) 87 dB
Dispersion	Conical	155°
Frequency	Response (± 3 dB)	(CALI424) 105 Hz – 20 kHz
		(CALI424I & CALI424II) 93 Hz – 20 kHz
	Range (-10 dB)	70 Hz – 20 kHz
Speaker type		2-way coaxial
Connection		Ceramic screw terminal with link through (CALI424)

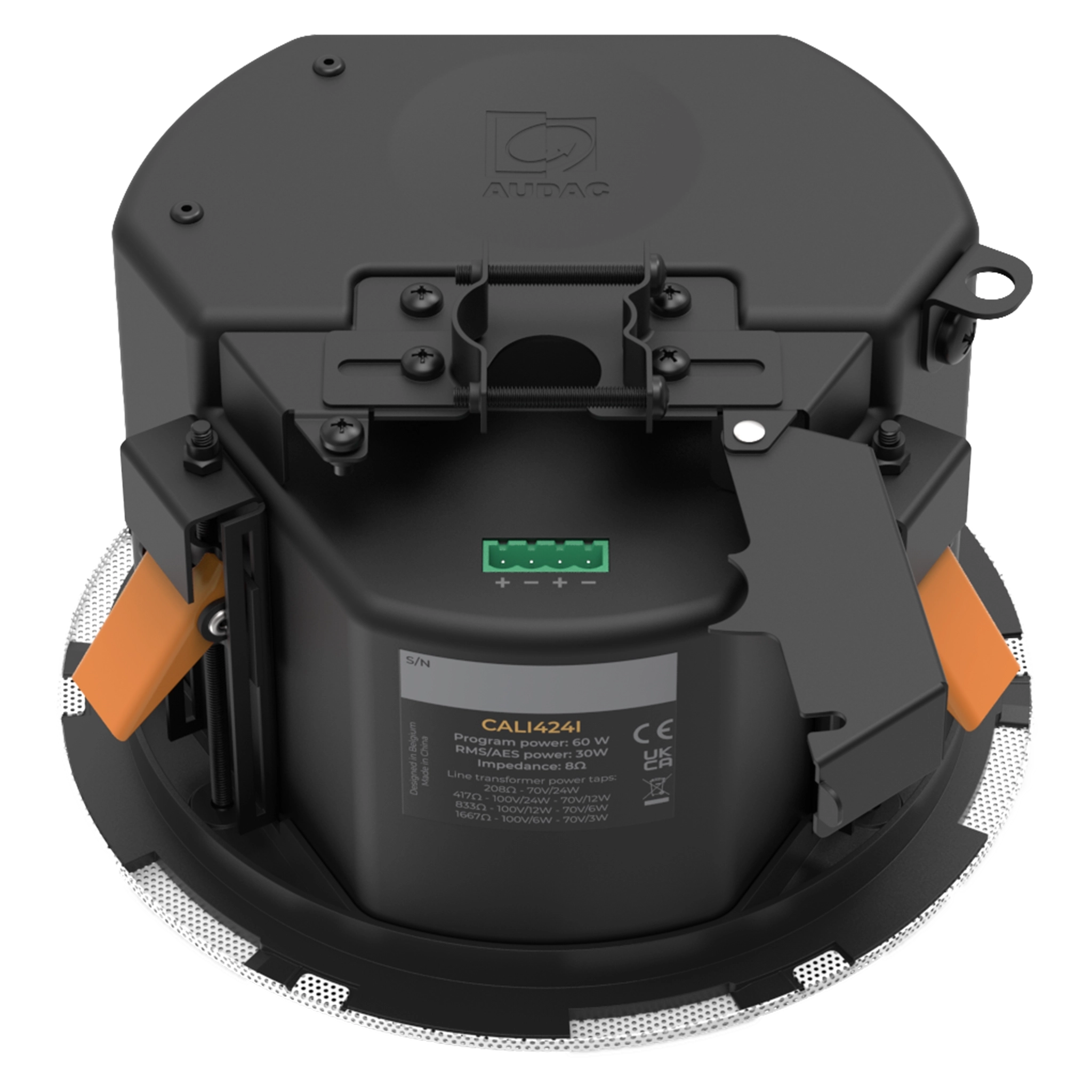

		Pluggable terminal block connector with link-through (CALI424I & CALI424II)
Line Transformer Tappings	1	208 Ω – 100 V / Not used – 70 V / 24 W
	2	417 Ω – 100 V / 24 W – 70 V / 12 W
	3	833 Ω – 100 V / 12 W – 70 V / 6 W
	4	1667 Ω – 100 V / 6 W – 70 V / 3 W

Product Features

Cut-out measurement	170 mm (Ø)
Dimensions	(CALI424) 192 x 110 mm (Ø x D)
	(CALI424I & CALI424II) 192 x 138 mm (Ø x D)
Built-in depth	(CALI424) 110 mm
	(CALI424I & CALI424II) 122 mm
Operating temperature	-20 °C ~ 60 °C
Weight	2.26 kg
Construction	ABS and powder coated steel
	Additional weatherproof & humidity proof coating to the speaker cone (CALI424II)

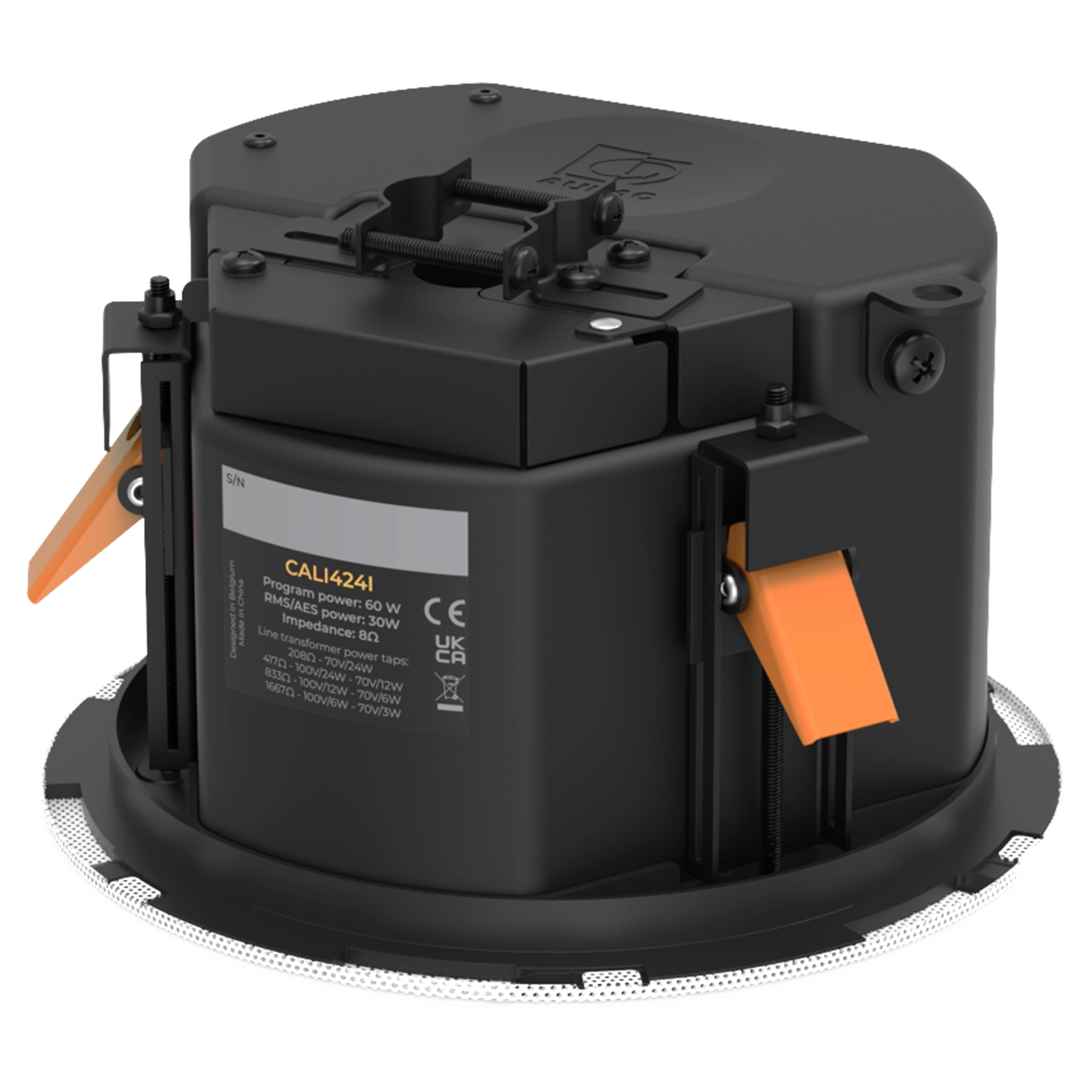

Mounting	SafeLatch™ mounting system

Categories: Audac, CEILING LOUDSPEAKERS

Description

Description

The CALI424 is a 2-way ceiling speaker with rear dome, constructed using a 4” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 155°.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm bypass connection.
