Meta-Tech Solutions and Systems Corp.

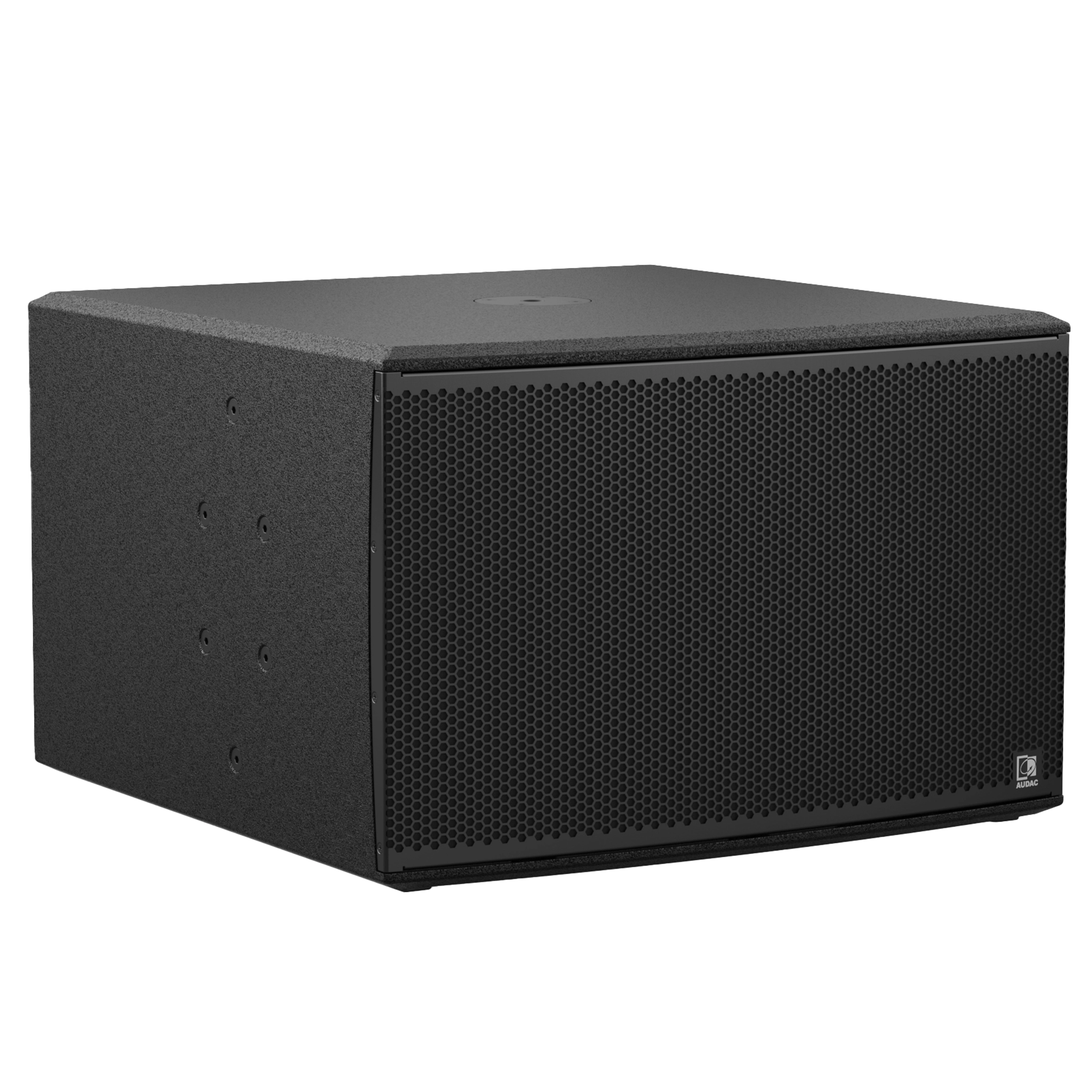

BASSO115

New15” ultra-high power infra-subwoofer

  • 3000 Watt program power
  • Low frequency extension down to 31Hz without processing
  • 127 dB of Max SPL (continuous)
  • Indoor model with Polyurea coated 18/36mm multiply plywood
  • Extremely ridged chassis and inner framing

Technical specifications

Available models
BASSO115/B New  Black version
System specifications
Speaker type 15” Infra-Sub
Configuration AeroVent
Peak power handling 6000 W
Program power handling 3000 W
Continuous power (AES) 1500 W
Impedance 8 Ω
Max SPL (Continuous) 130 dB
Sensitivity (1W/1m) 98 dB
Frequency Response (- 3 dB) 37 Hz – 120 Hz
  Range (-10 dB) 31 Hz – 200 Hz
Bass port tuning frequency 38 Hz
Drivers 15” carbon cone with dual suspension (low-loss) and 4” high excursion voice coil
Connectors High-current terminal block with linkthrough
Product Features
Dimensions 688 x 446 x 703 mm (W x H x D) (excluding feet)
  688 x 451 x 703 mm (W x H x D) (including feet)
Weight 35 kg
Operating temperature -20 °C ~ 70 °C
Construction 18 mm Multiply plywood
  Coating – Multi-Layer polyurea coating (4-layer)
  Metal parts – Zinc plated bolts & fasteners
Front finish 2.5 mm Zinc plated steel with hexagon perforations and powder coat & acoustical foam backing
Mounting & handling Rigging points 12 x M10 mounting bracket installation holes on both sides
  Stand fitting 1 x M20 internal thread stand adapter
Colours Black

Description

Engineered for demanding environments such as nightclubs, concert venues, theme parks, and hospitality spaces, the BASSO Series combines cutting-edge technologies like the pure carbon fiber cone and AeroVent for exponential low-noise venting with meticulous craftsmanship to set a new standard in low-frequency fidelity.

With a focus on ultra-high power output and exceptional sound clarity, the BASSO Series offers a flexible, efficient solution for diverse applications. Each model is designed to deliver a visceral sound experience with immersive infra-sub performance and extremely low distortion.
