Meta-Tech Solutions and Systems Corp.

ARCHI10

NewCompact 10” architectural subwoofer

  • 450 Watt program power
  • Low frequency extension down to 54Hz without processing
  • 124 dB of Max SPL (continuous)
  • Architecturally discreet and compact design
  • Immersive sound experience
  • Tailor-made high-excursion driver for superior performance
  • Flexible ceiling & wall mount option

Technical specifications

Available models

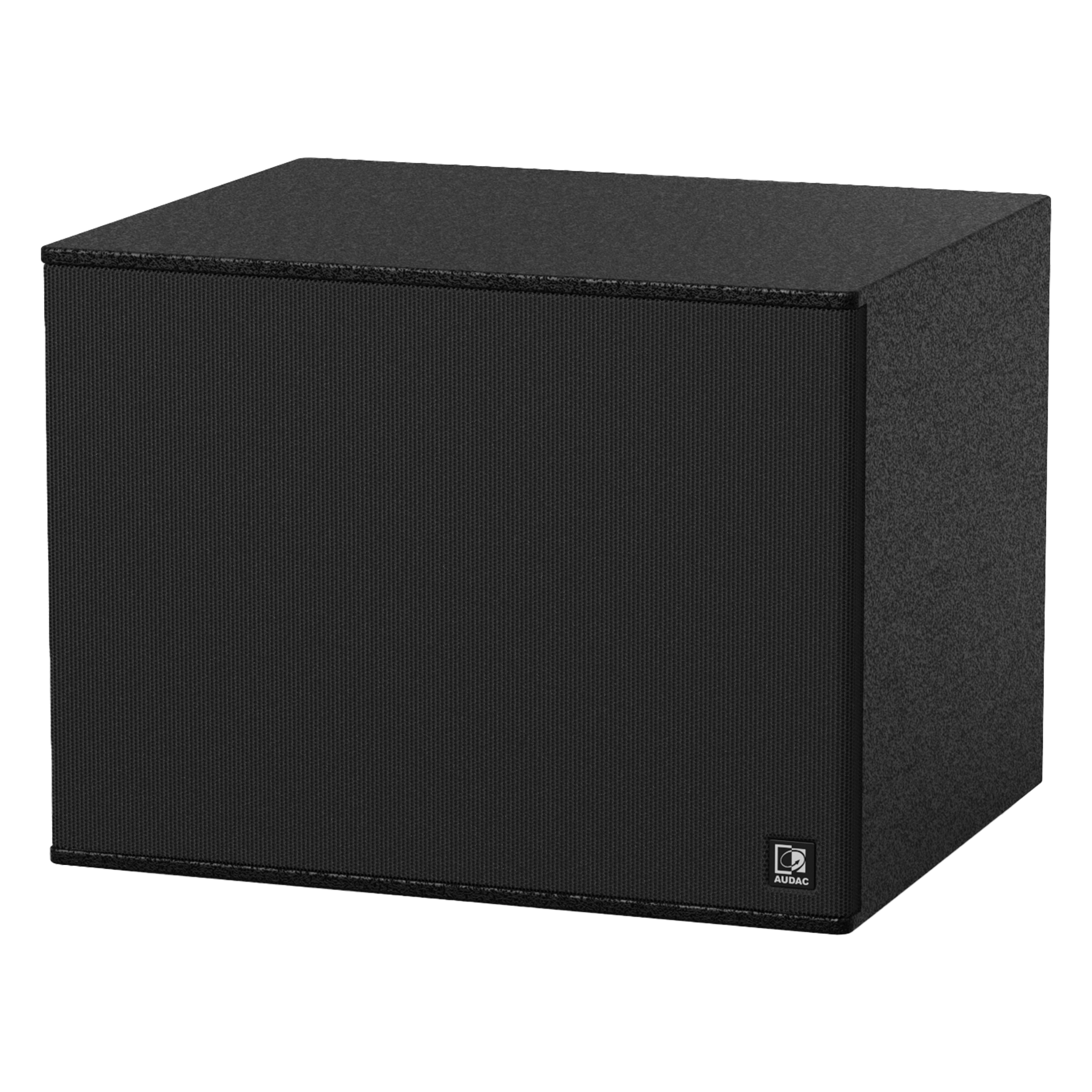

ARCHI10/B New  Black version

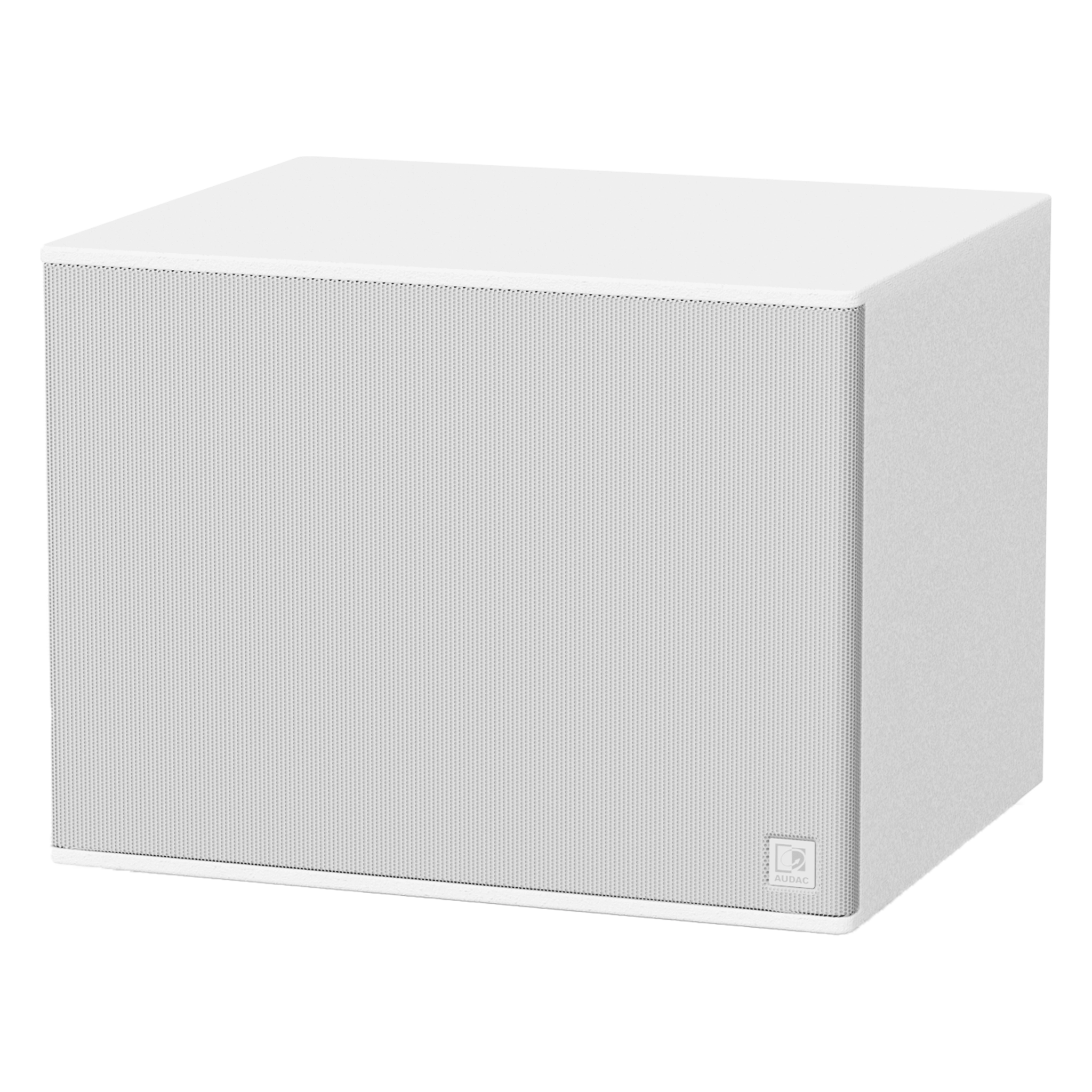

ARCHI10/W New  White version
System specifications
Speaker type 10” Bass reflex cabinet
Peak power handling 900 W
Program power handling 450 W
Continuous power (AES) 225 W
Impedance 8 Ω
Max SPL (Continuous) 124 dB
Sensitivity (1W/1m) 98 dB
Frequency Response (- 3 dB) 69 Hz – 120 Hz
  Range (-10 dB) 54 Hz – 200 Hz
Bass port tuning frequency 51 Hz
Connectors Terminal block with linkthrough
Drivers 10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
  Cone material WeatherTreated Paper
Product Features
Dimensions 405 x 300 x 334 mm (W x H x D) (excluding feet)
  405 x 312 x 334 mm (W x H x D) (including feet)
Weight 11.2 kg
Operating temperature -20 °C ~ 70 °C
Construction 15 mm MDF with multi-layer Polyurea coating
Front finish AcoustiMesh ​
Colours Black & White

Description

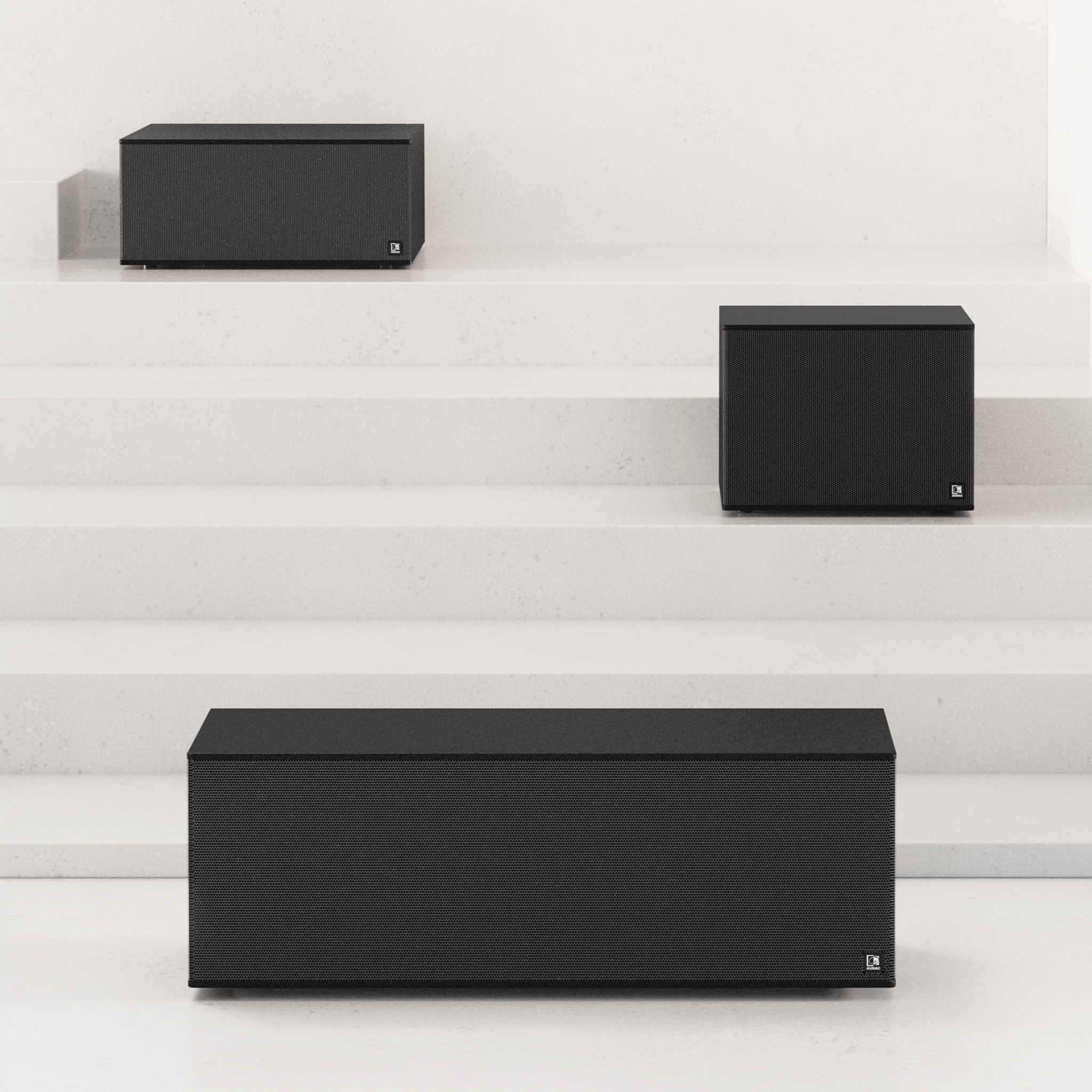

The ARCHI Series combines architectural elegance with groundbreaking audio performance. Designed for bars, restaurants, hospitality, and residential applications, these compact subwoofers deliver immersive sound with minimal visual impact.

Featuring innovations like AcoustiMesh for acoustic neutrality, AeroVent for noise-free bass performance, and WeatherTreated capabilities, the ARCHI Series excels indoors and outdoors. With low-frequency extensions down to 26Hz, flexible mounting options, and durable materials, the ARCHI Series redefines low-frequency fidelity, offering powerful, precise bass in a discreet, stylish design.

ARCHI10: Compact Precision

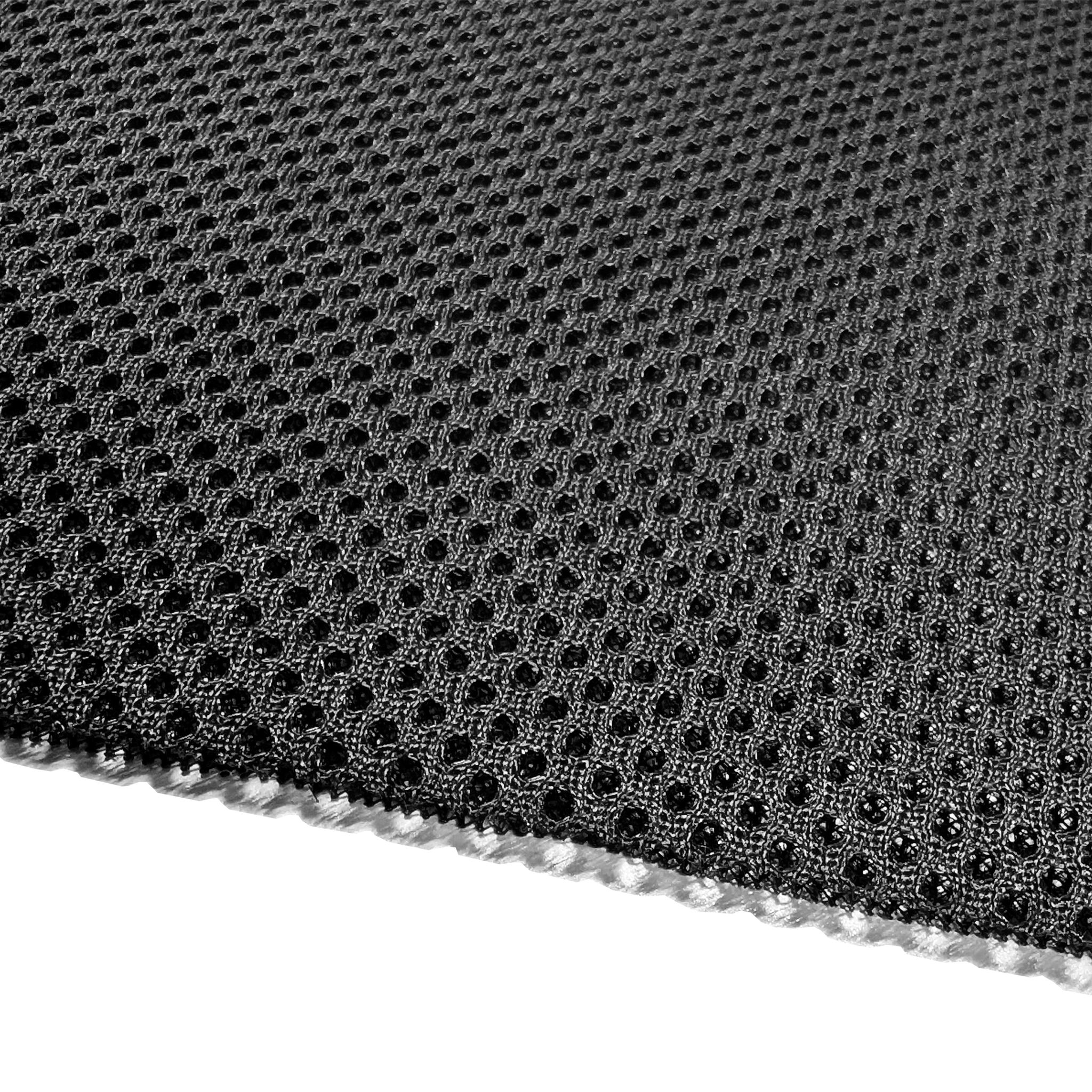

The ARCHI10 model offers a perfect balance of style and performance. Its bass reflex design, combined with AcoustiMesh – an acoustic neutral 3D fabric – ensures clean, immersive audio with precise low frequencies. The polyurea-coated 15mm multiply plywood enclosure enhances durability, while the waterproof paper cone adds resilience to the design, ensuring reliable performance over time. Perfect for indoor applications, the ARCHI10 delivers powerful bass in a compact and stylish form factor.
