ALTI6M

2-way 6.5″ design surface mount loudspeakers

Innovative & unique design
Countless mounting possibilities
AWX5™ waterproof connector
Wide opening angle
Outdoor rated construction
Multi-tapping 70V / 100V line transformer

Technical specifications

Available models

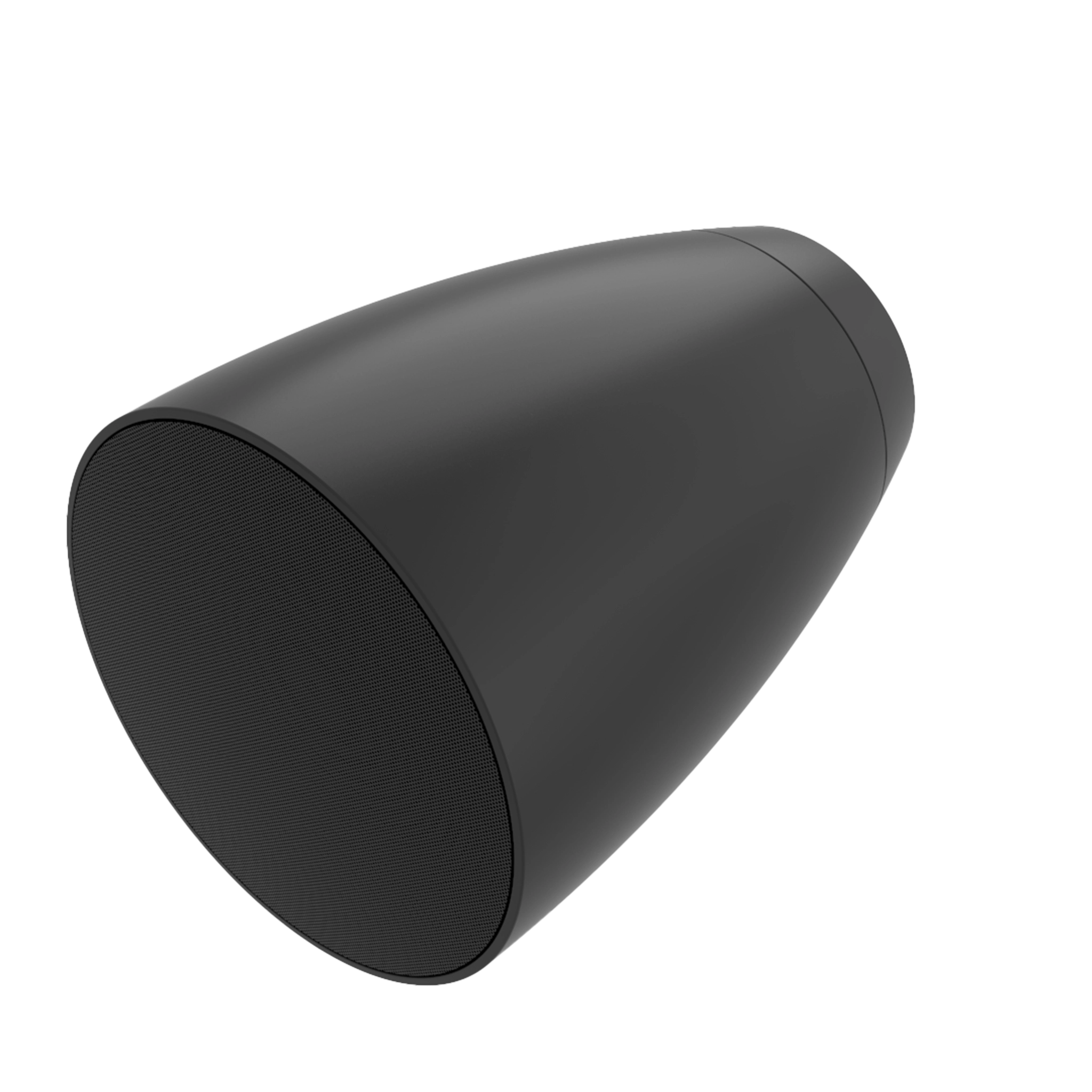

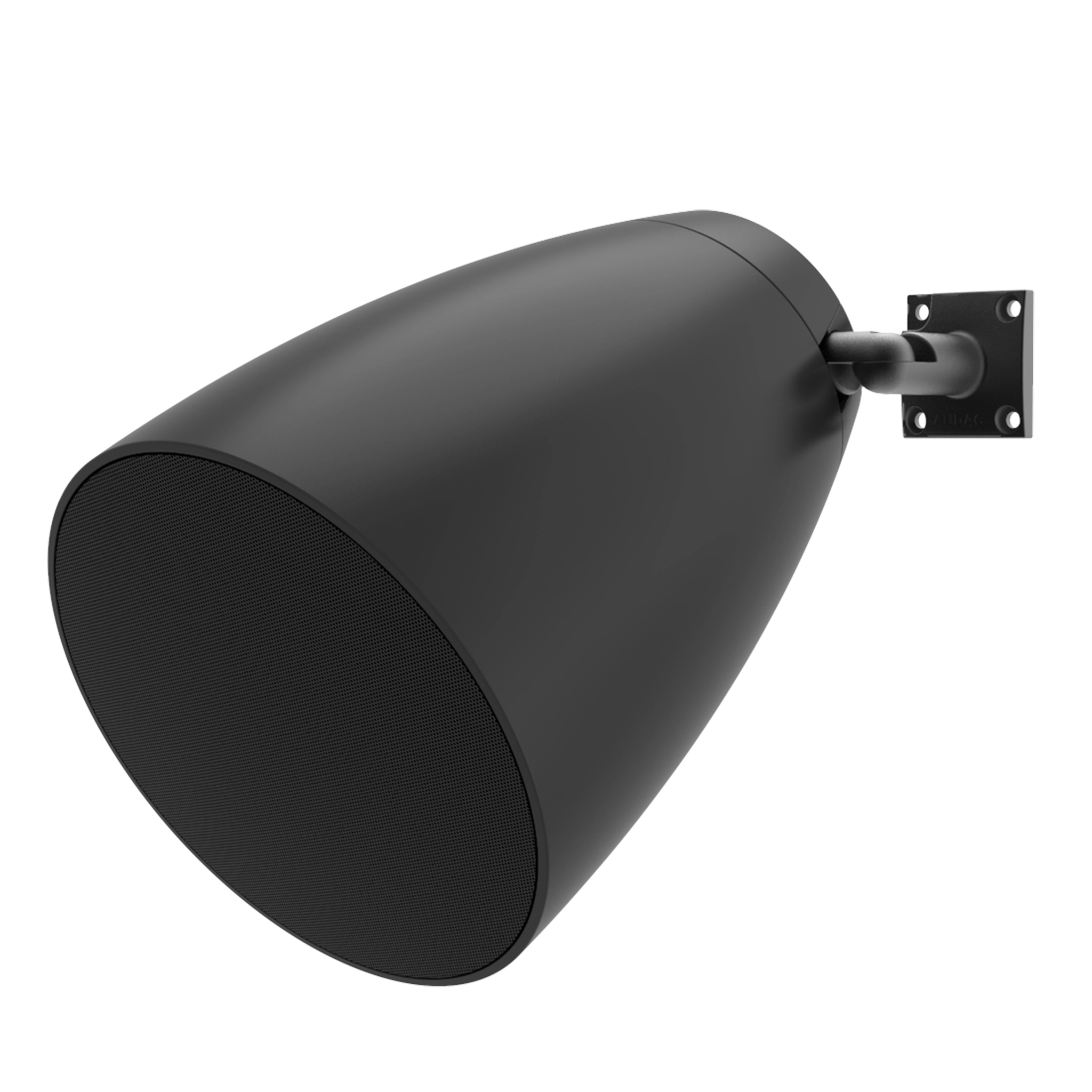

ALTI6M/B	Black version

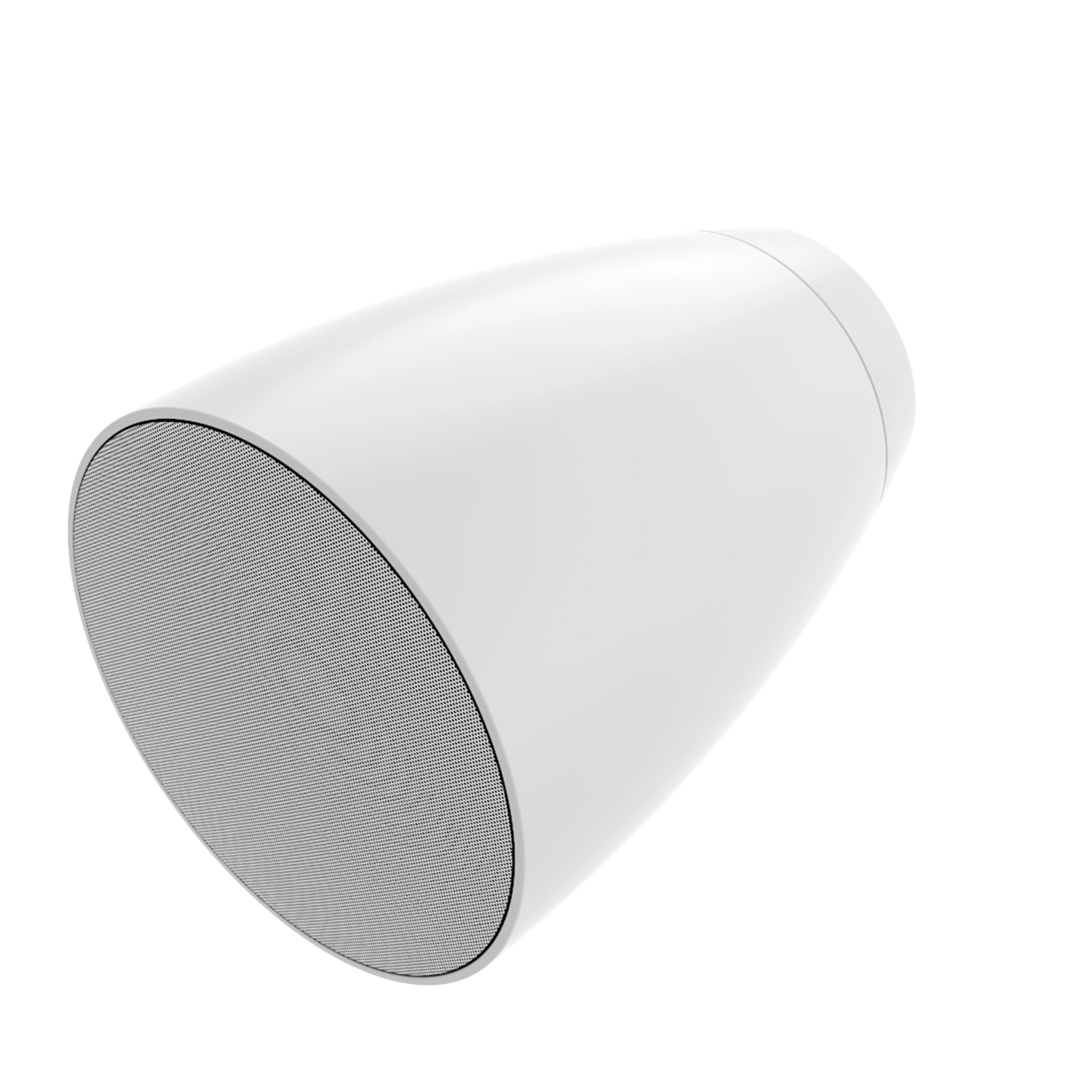

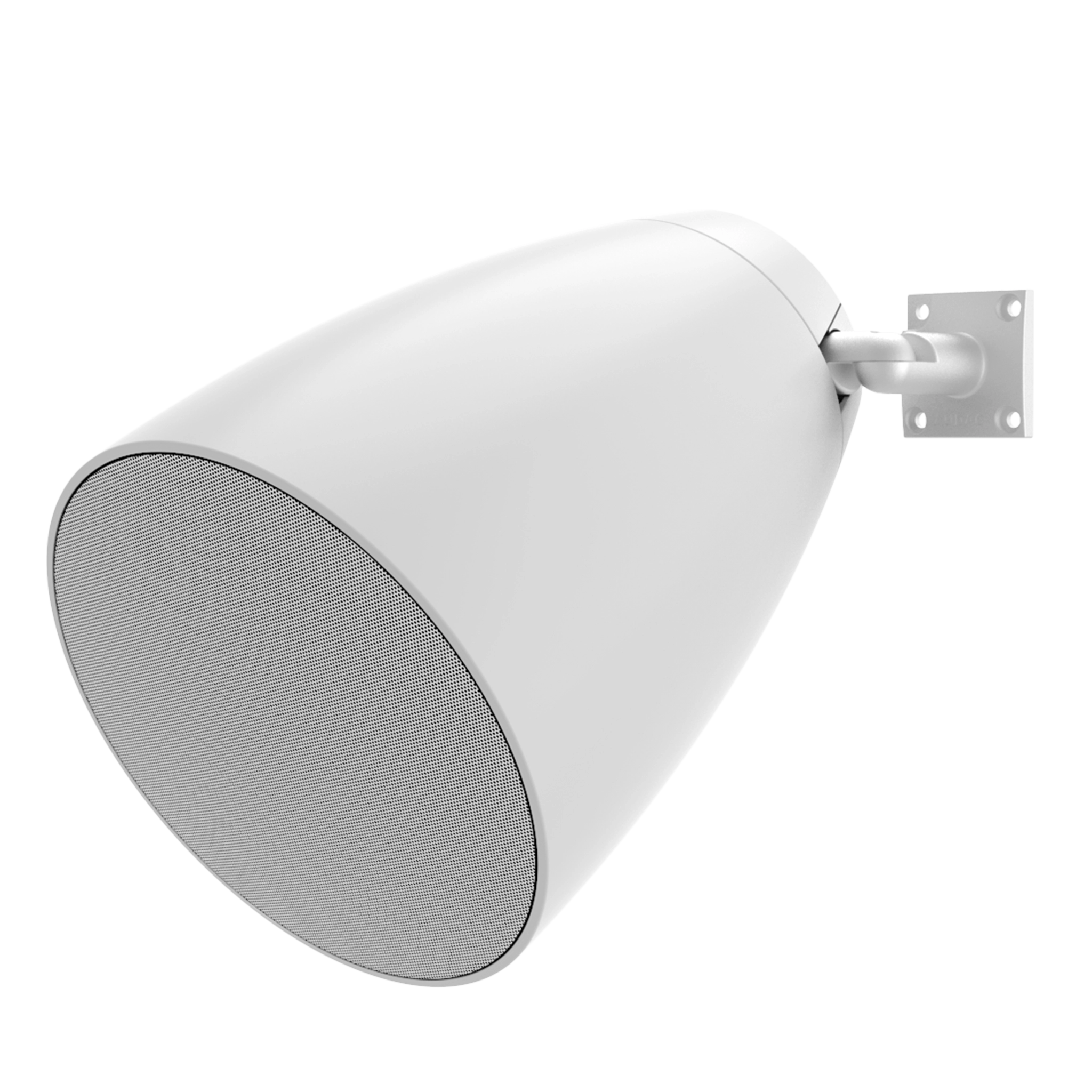

ALTI6M/W	White version

System specifications

Speaker type		2-way coaxial
Peak power handling		240 W
Program power handling		120 W
Continuous power (AES)		60 W
Impedance		16 Ω
Line Transformer Tappings	1	83 Ω – 100 V / Not used – 70 V / 60 W
	2	167 Ω – 100 V / 60 W – 70 V / 30 W
	3	333 Ω – 100 V / 30 W – 70 V / 15 W
	4	667 Ω – 100 V / 15 W – 70 V / 7.5 W
Dispersion	Conical	115° (average 500 Hz to 5 kHz @ -6 dB)
Connectors		Waterproof AWX-5 connector
Sensitivity (1W/1m)		83 dB
Sound Pressure (Max. W/1m)	@ 16 Ω	101 dB
Frequency	Range (-10 dB)	61.5 Hz – 20 kHz
	Response (± 3 dB)	75 Hz – 17 kHz
Ingress Protection rating		IP65

Product Features

Connection cable length		0.7 m
Construction		Polypropylene
Front finish		Aluminium grill
Mounting & handling		2-way Revolving mounting bracket
Weight		3.48 kg
Dimensions		235 x 230 x 336 mm (W x H x D)
Accessories	Included	5-pin connection cable (70 cm) AWC07
		2-way Revolving mounting bracket

Categories: Audac, WEATHER-PROOF LOUDSPEAKERS

Description

Description

“Don’t feel like hanging around?”

The ALTI6M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.

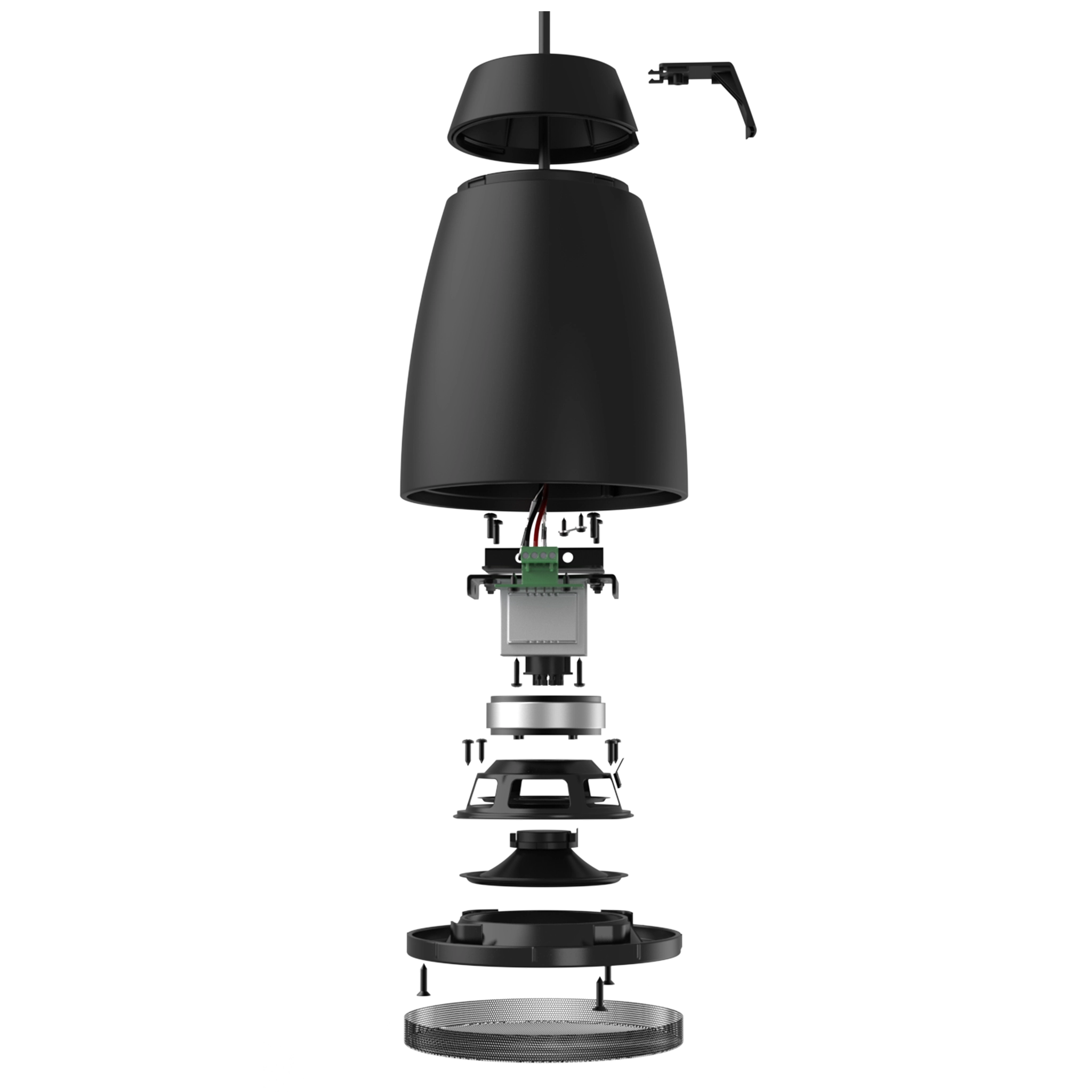

The ALTI6M features a 2-way 6,5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved.
